HE145_140D

HE145_140D

◆  TOP SMD2835 chip, high brightness, low decay.

◆  Black/white/yellow FPC are optional.DC12V or DC24V drive, safe usage.

◆  Thick 2oz~3oz copper PCB for excellent thermal management.

◆  Available in IP20,IP65,IP66,IP67,IP68.

◆  3M adhesive backing.

◆  Low power consumption, long life span, free maintenance.

◆  Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.


Technical Data

LED ChipSMD2835
IP classificationIP20/IP68

Input Voltage

DC24V

Strip Power16W/M
Lamp Luminous Efficiency2320 Lm/M
Maximum quantity per power input5 meters
Average lifetime30,000 hour
Color temperature2700K ~ 7000K
Operating temperature-20° C till +50° C

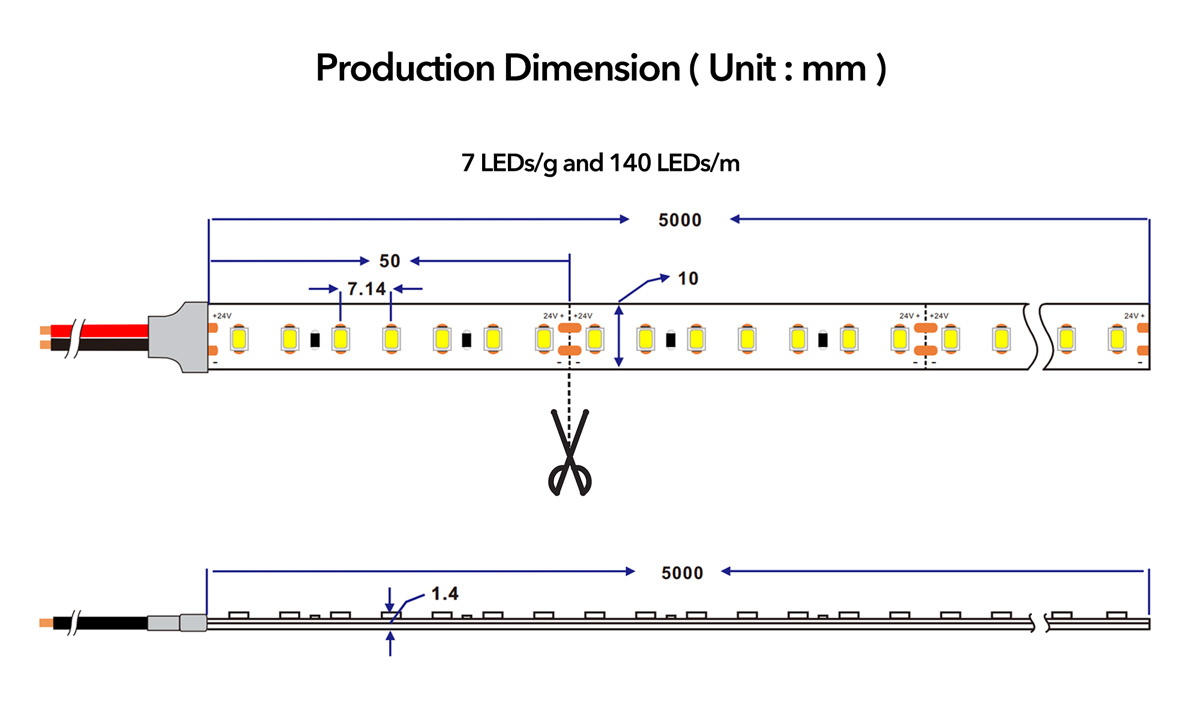

PCB Width10 mm
min. Bending radius20 mm
LED QTY/M140 Leds/Meter
CuttableAll 7 LEDs (5 cm)
CRI80~95
Warranty3 Years




MODEL : HE145-XXXS SERIES
