S480F5S

S480F5S

◆  COB (Chip On board) design, high density and dotless.

◆  180° light emitting Angle for thinner aluminum profile.

◆  Short cutting unit or free cutting.

◆  DC12V or DC24V drive, safe usage.

◆  Thick 2oz~3oz copper PCB for excellent thermal management.

◆  Available in IP20,IP66,IP68.

◆  3M adhesive backing.

◆  Low power consumption, long life span, free maintenance.

◆  Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.

Technical Data

IP classificationIP20/IP66/IP68

Input Voltage

DC24V

Strip Power5W/M
Lamp Luminous Efficiency540 Lm/M
Maximum quantity per power input5 meters
Average lifetime30,000 hour
Color temperature2700K ~ 7000K
Operating temperature-20° C till +50° C

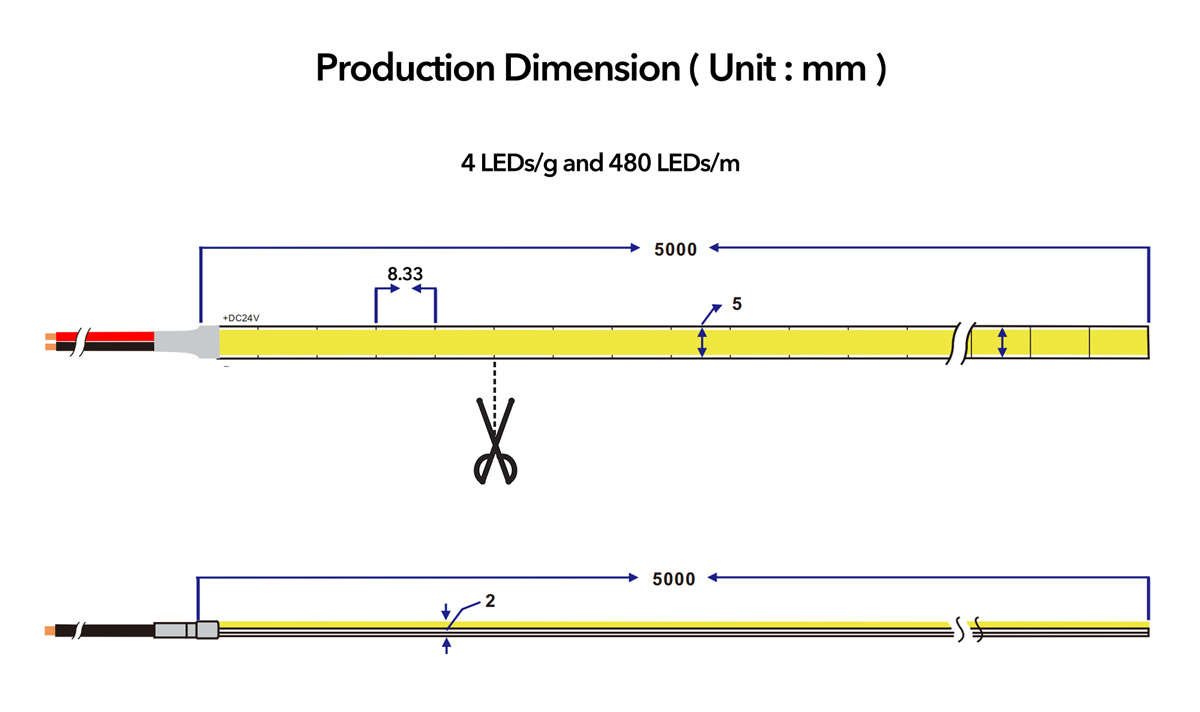

PCB Width5 mm
min. Bending radius20 mm
LED QTY/M480 Leds/Meter
CuttableAll 4 LEDs (8.33 mm)
CRI90
Warranty3 Years

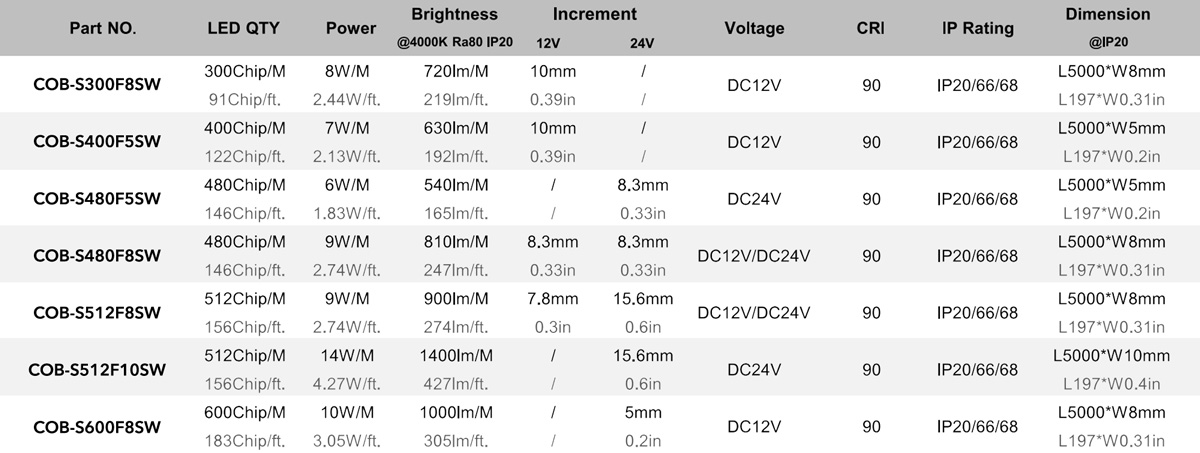

MODEL : COB-SXFXSW SERIES
