HE160_160D

◆ TOP SMD2835 chip, high brightness, low decay.

◆ Black/white/yellow FPC are optional.DC12V or DC24V drive, safe usage.

◆ Thick 2oz~3oz copper PCB for excellent thermal management.

◆ Available in IP20,IP65,IP66,IP67,IP68.

◆ 3M adhesive backing.

◆ Low power consumption, long life span, free maintenance.

◆ Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.

Technical Data

LED Chip	SMD2835
IP classification	IP20/IP68
Input Voltage	DC24V
Strip Power	16W/M
Lamp Luminous Efficiency	2560 Lm/M
Maximum quantity per power input	5 meters
Average lifetime	30,000 hour
Color temperature	2700K ~ 7000K
Operating temperature	-20° C till +50° C

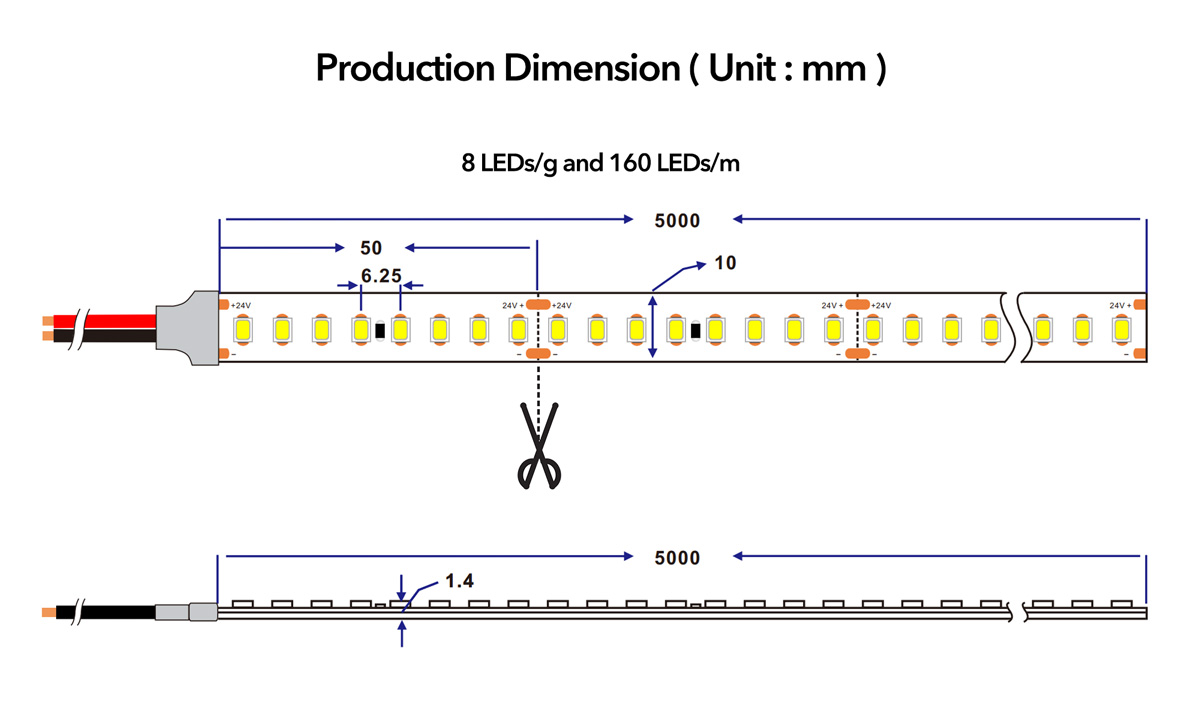

PCB Width	10 mm
min. Bending radius	20 mm
LED QTY/M	160 Leds/Meter
Cuttable	All 8 LEDs (5 cm)
CRI	80~95
Warranty	3 Years

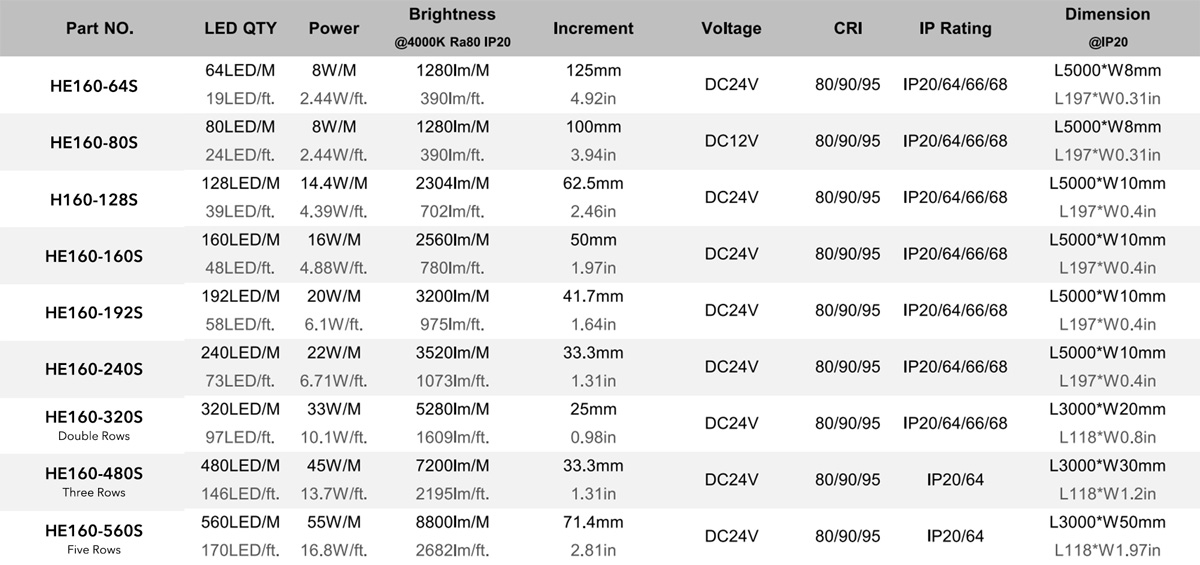

MODEL : HE160-XXXS SERIES
