S480F8

◆ COB (Chip On board) design, high density and dotless.

◆ 180° light emitting Angle for thinner aluminum profile.

◆ DC12V or DC24V drive, safe usage.

◆ Ultra-high brightness, light efficiency up to 100lm/W.

◆ Thick 2oz~3oz copper PCB for excellent thermal management.

◆ Available in IP20,IP66,IP68.

◆ 3M adhesive backing.

◆ Low power consumption, long life span, free maintenance.

◆ Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.

Technical Data

IP classification	IP20/IP66/IP68
Input Voltage	DC12V / DC24V
Strip Power	9W/M
Lamp Luminous Efficiency	900 Lm/M
Maximum quantity per power input	5 meters
Average lifetime	30,000 hour
Color temperature	2700K ~ 7000K
Operating temperature	-20° C till +50° C
PCB Width	8 mm
min. Bending radius	20 mm
LED QTY/M	480 Leds/Meter

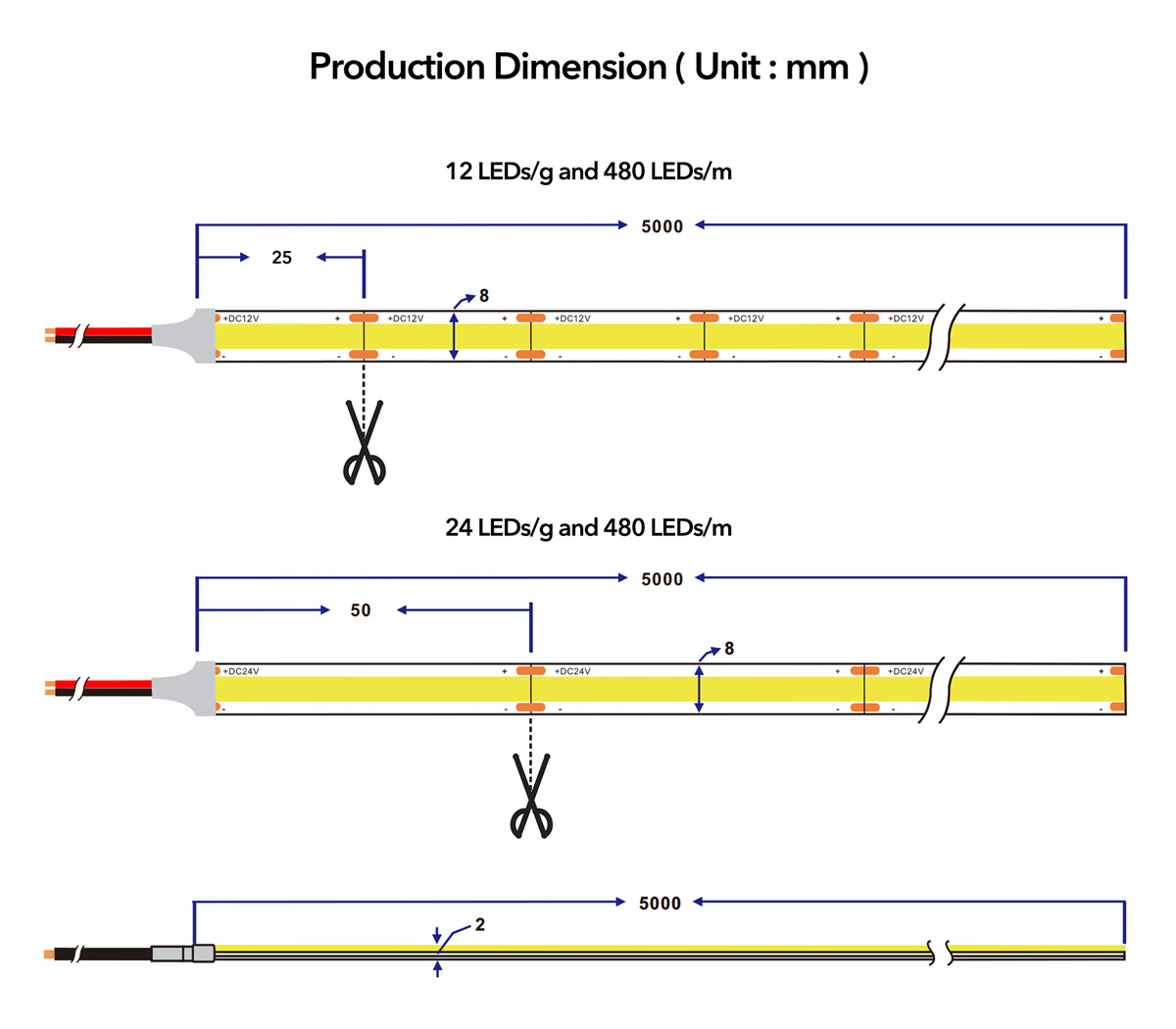

Cuttable	DC12V : All 12 LEDs (25 mm) DC24V : All 24 LEDs (50 mm)
CRI	90
Warranty	3 Years

MODEL : COB-SXFXW SERIES
