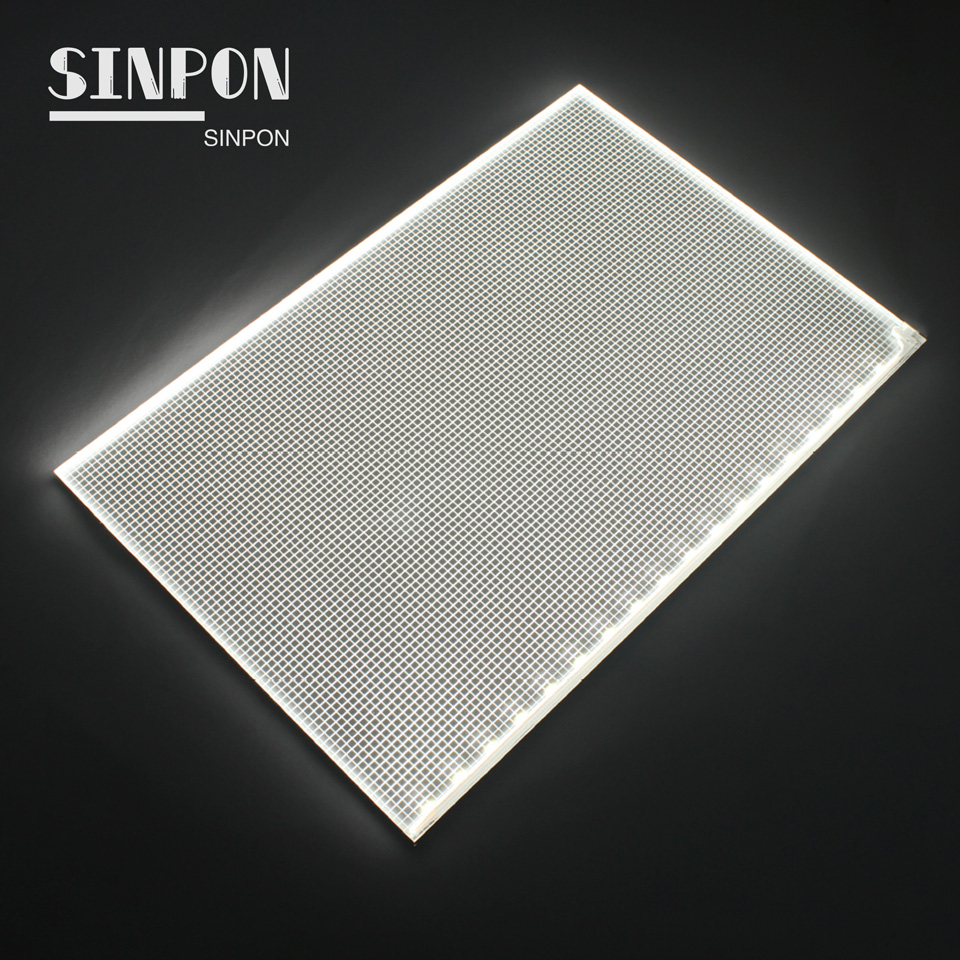

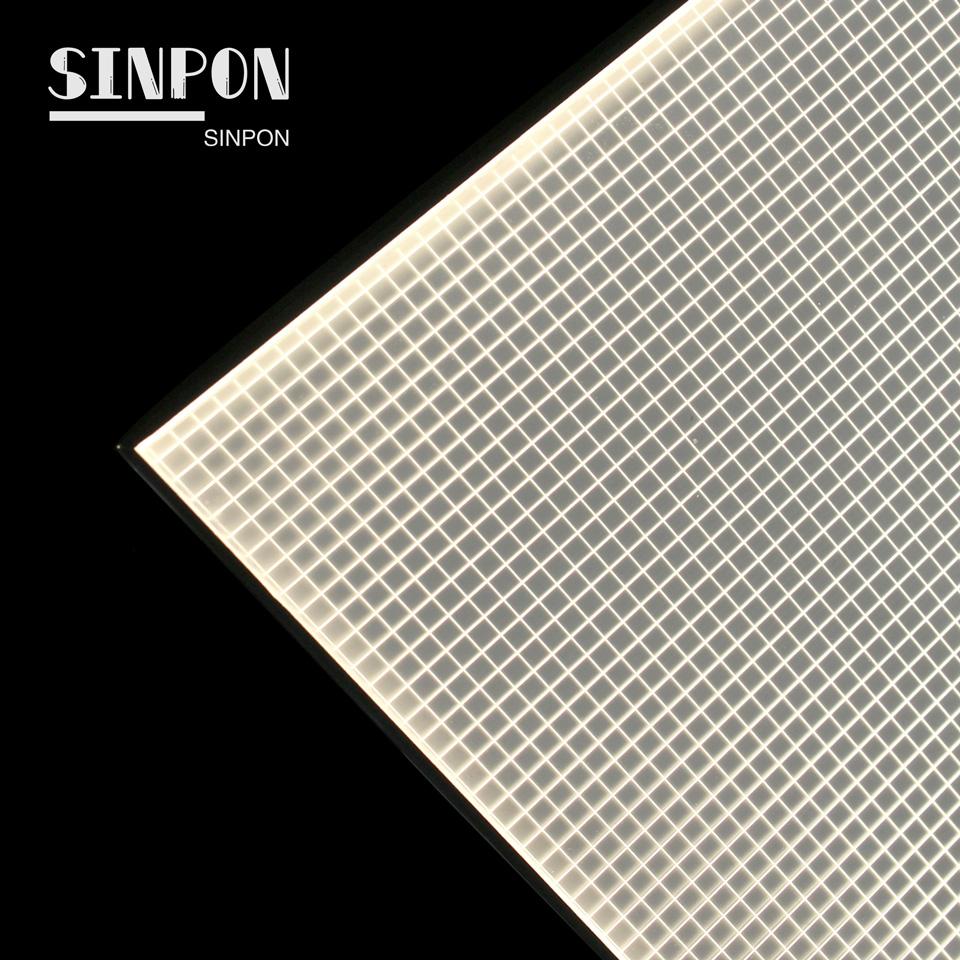

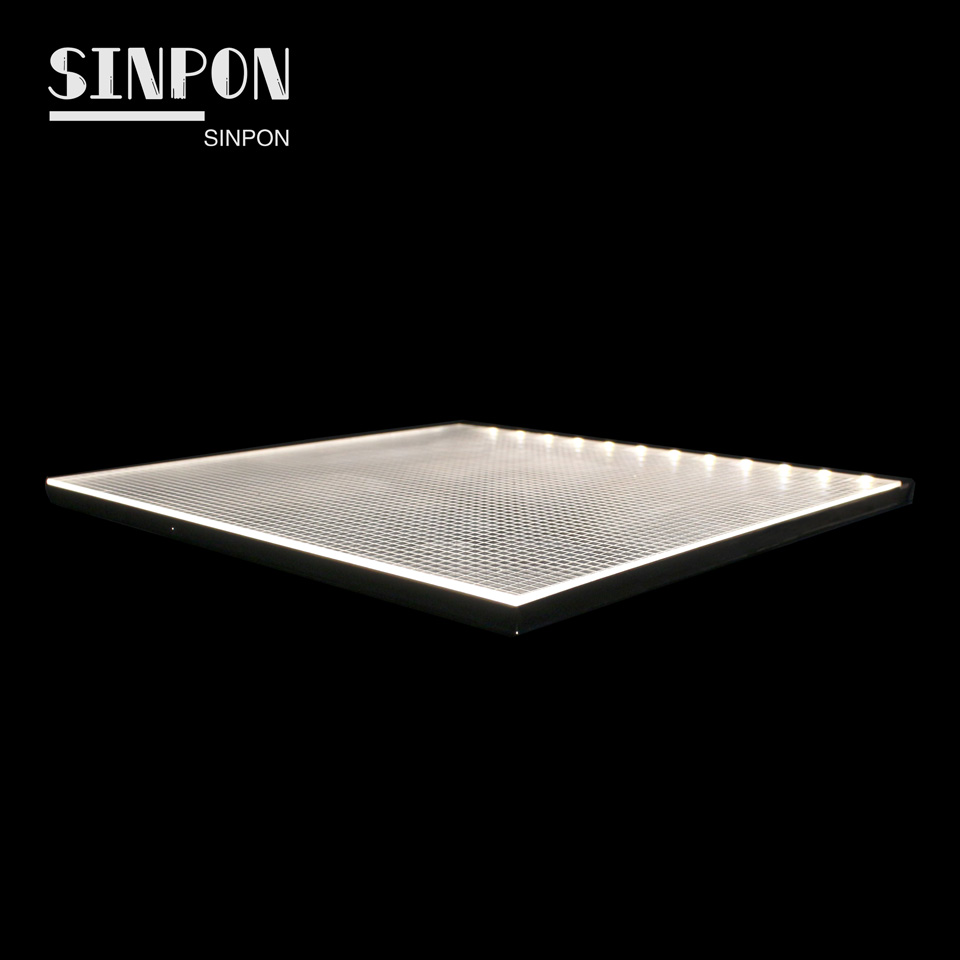

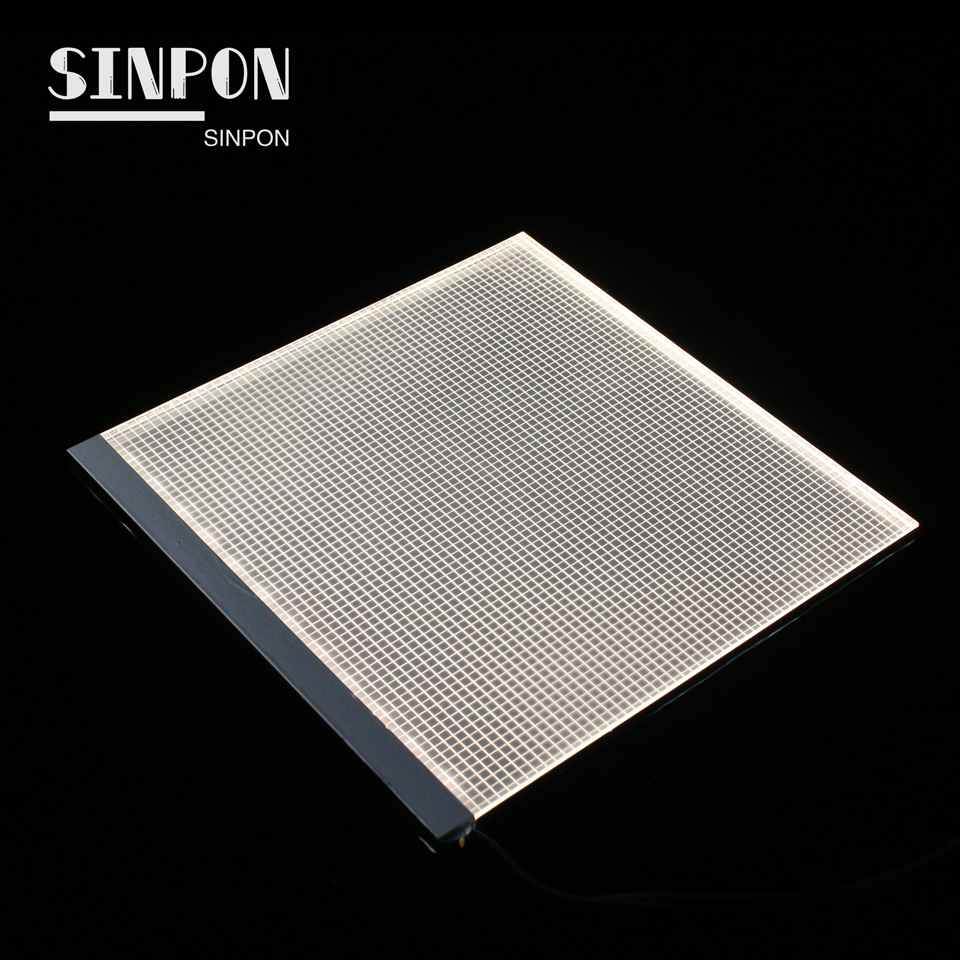

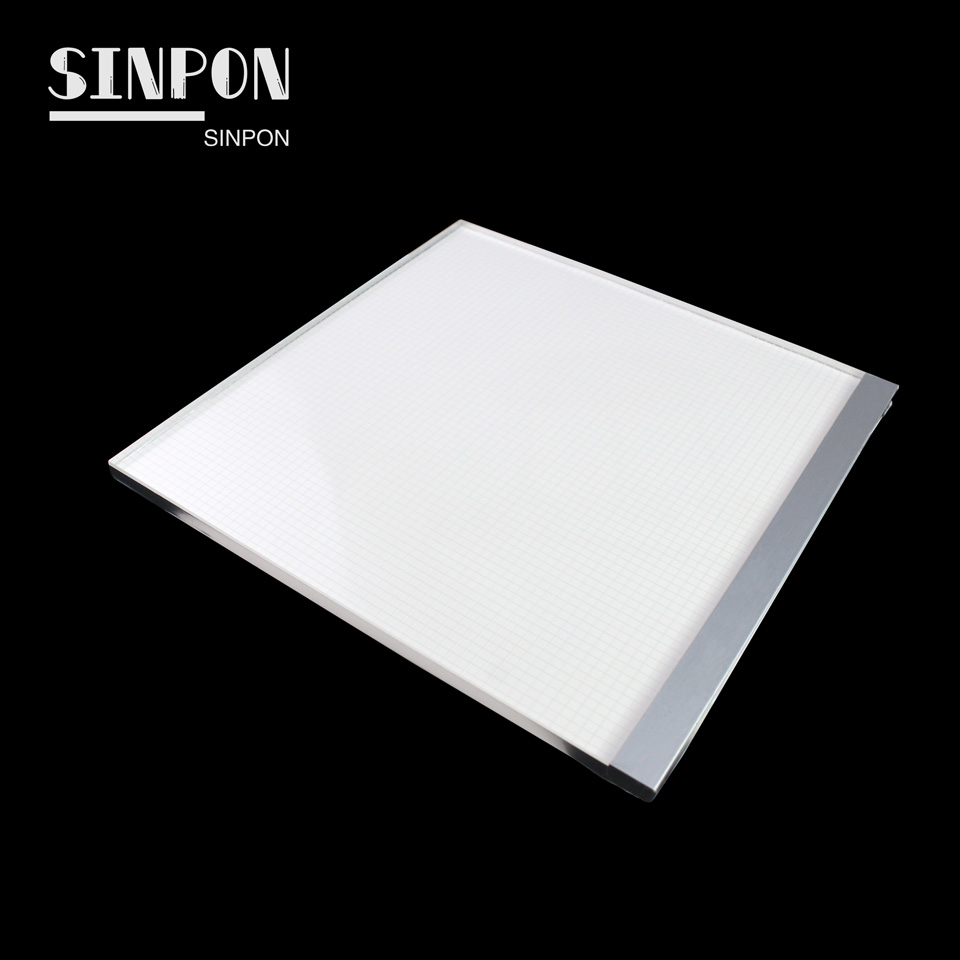

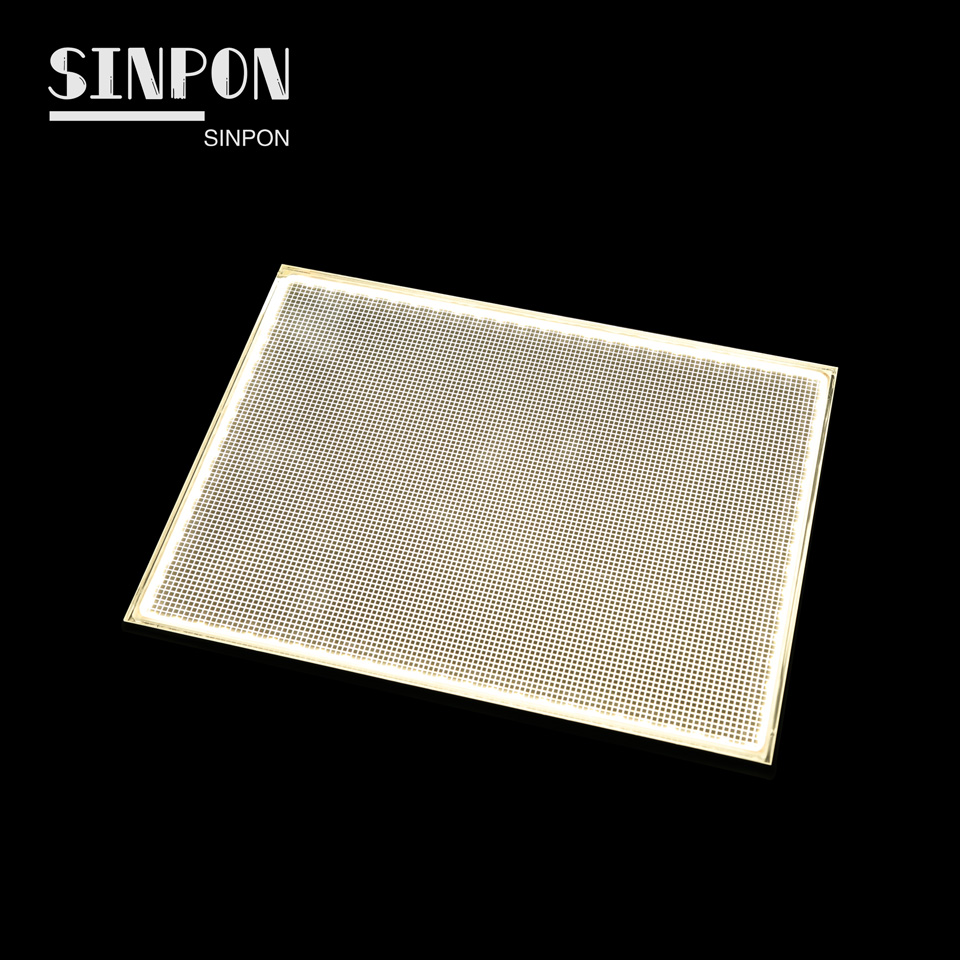

SPN-LLS

◆ Available In Custom Sizes & Shapes.

◆ Can Be Used In "Frameless" Designs.

◆ V-cutting Technology.

◆ High Brightness (2000 Lux ~ 10000 Lux).

◆ Heat Sink Technology To Maximize LED Lifespan (50000 Hours).

◆ Low Power Consumption (70% Less Than Traditional Fluorescent).

◆ Energy Saving And Maintenance Free.

◆ Superior Consistent Light Quality

◆ 2-year Warranty.

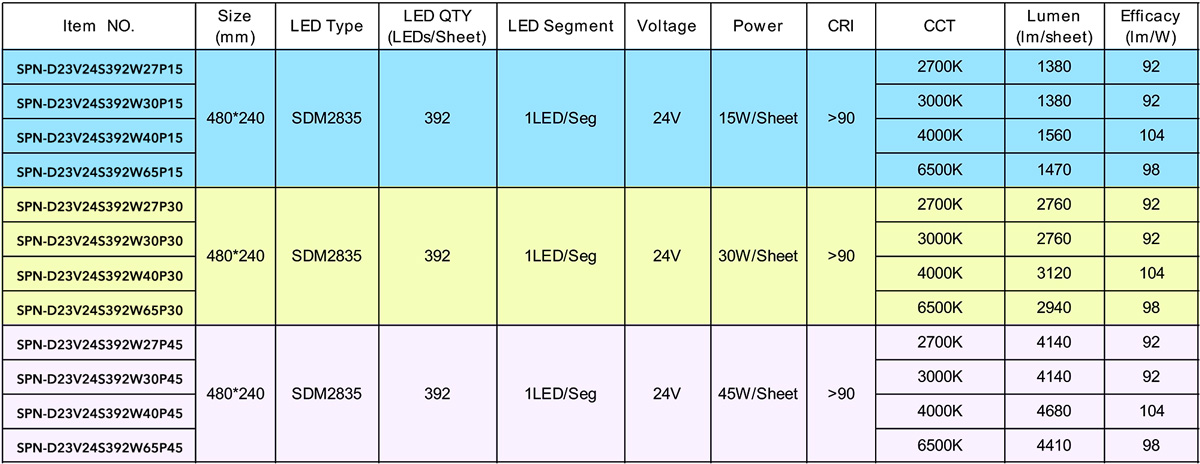

Model	SPN-LLS
Material	PMMA Mitsubishi Acrylic Plate
Input Voltage	DC 12V / 24V
Wire Size	20 AWG 2 Wire

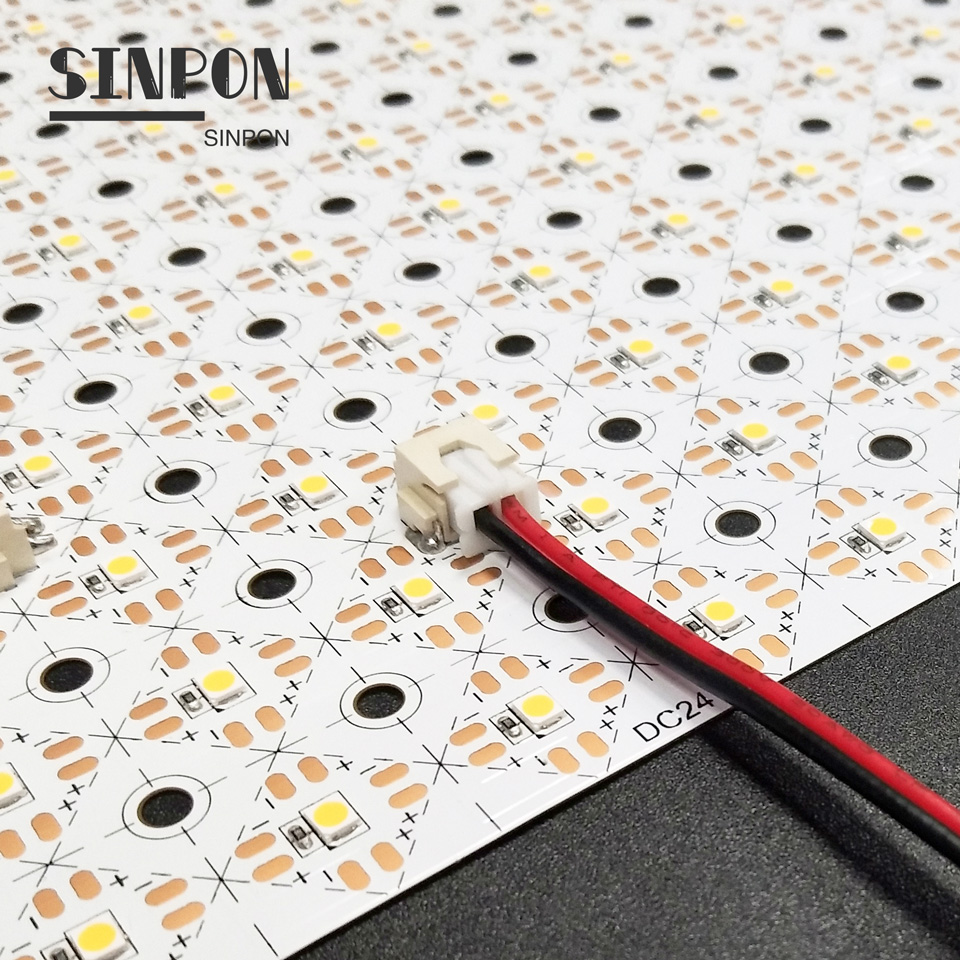

Connector	2.1/5.5mm Barrel Plug
Power	To Be Specific

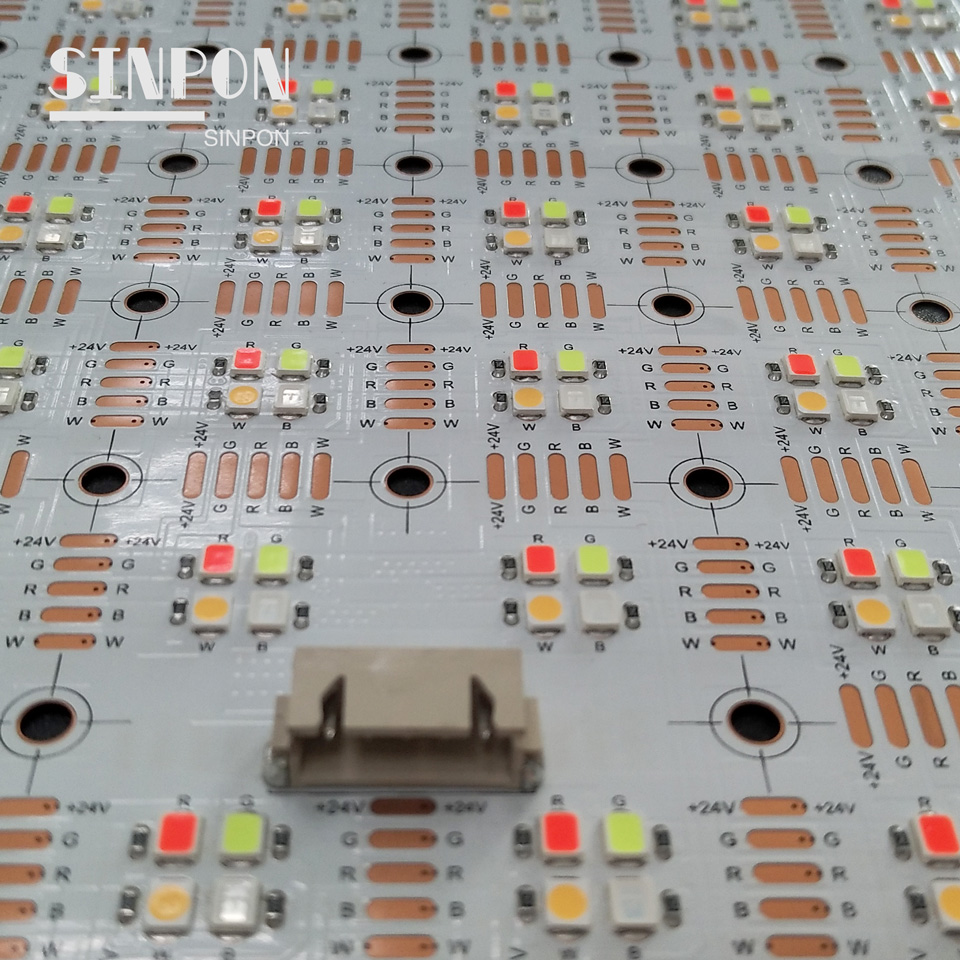

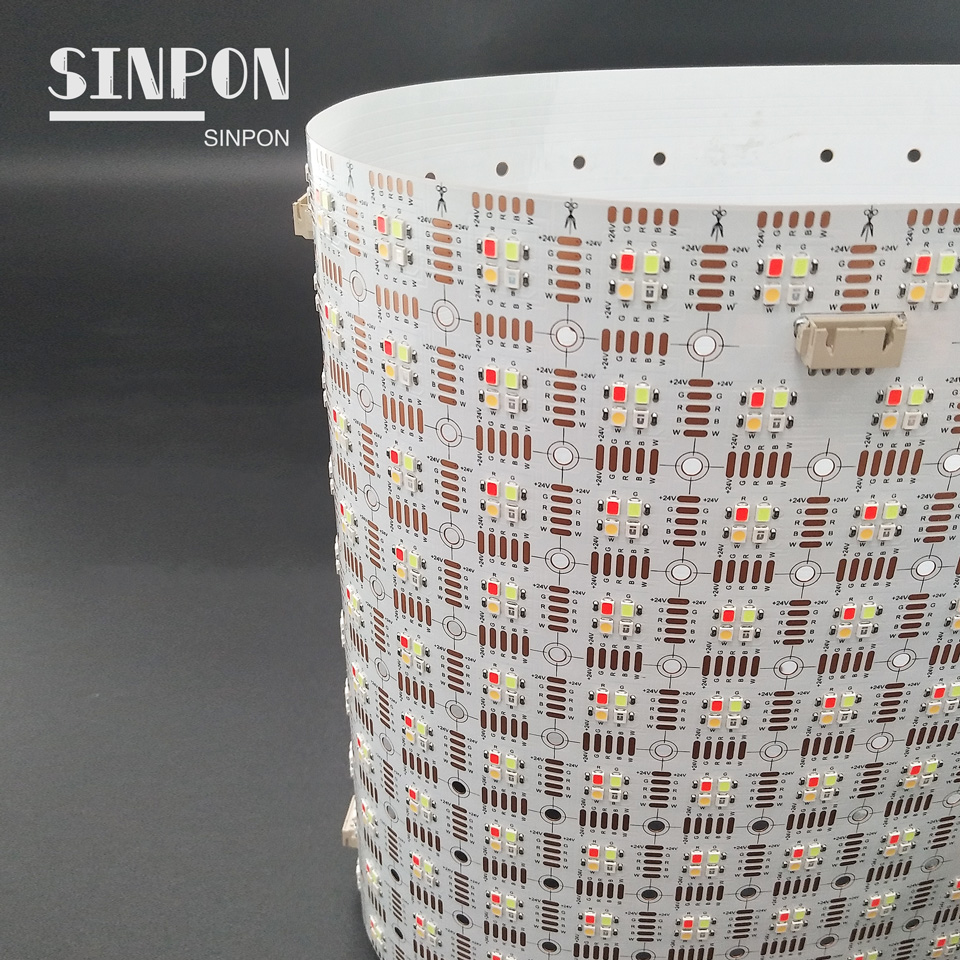

Light Source	LED Strip

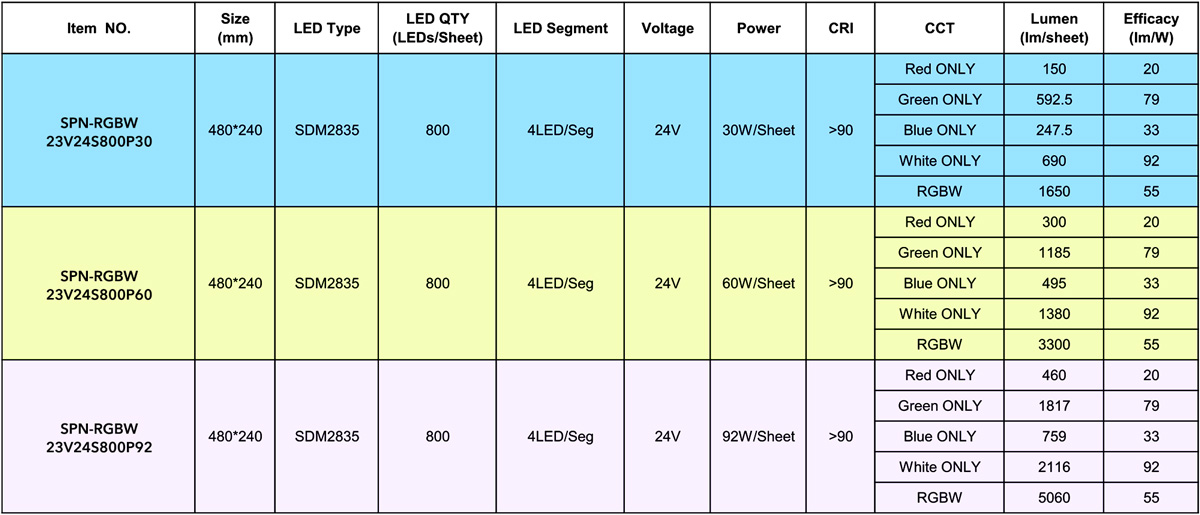

Color Temperature	2700K ~ 6500K, RGB, RGBW, CCT
Mounting	Wall Mounted With Screws
Thickness	4mm / 6mm / 8mm

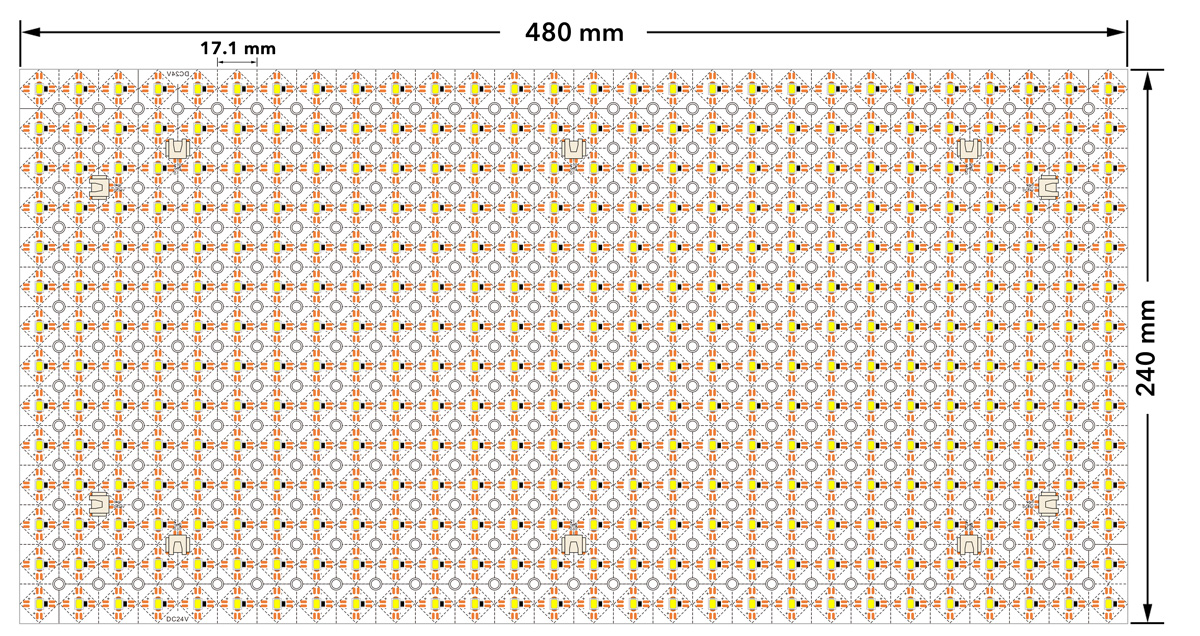

Minimum Size (W x L)	50mm x 50mm (2" x 2")
Maximum Size (W x L)	1499mm x 2997mm (59" x 118")
Weight (T:8mm)	1.95 lbs/sq.ft. (9.54 kg/sq.M)
Operating Temperature	-30° C (-22° F) ~ +40° C (+104° F)
Package	Inner PP Bag, Outer Carton
Warranty	2 Years

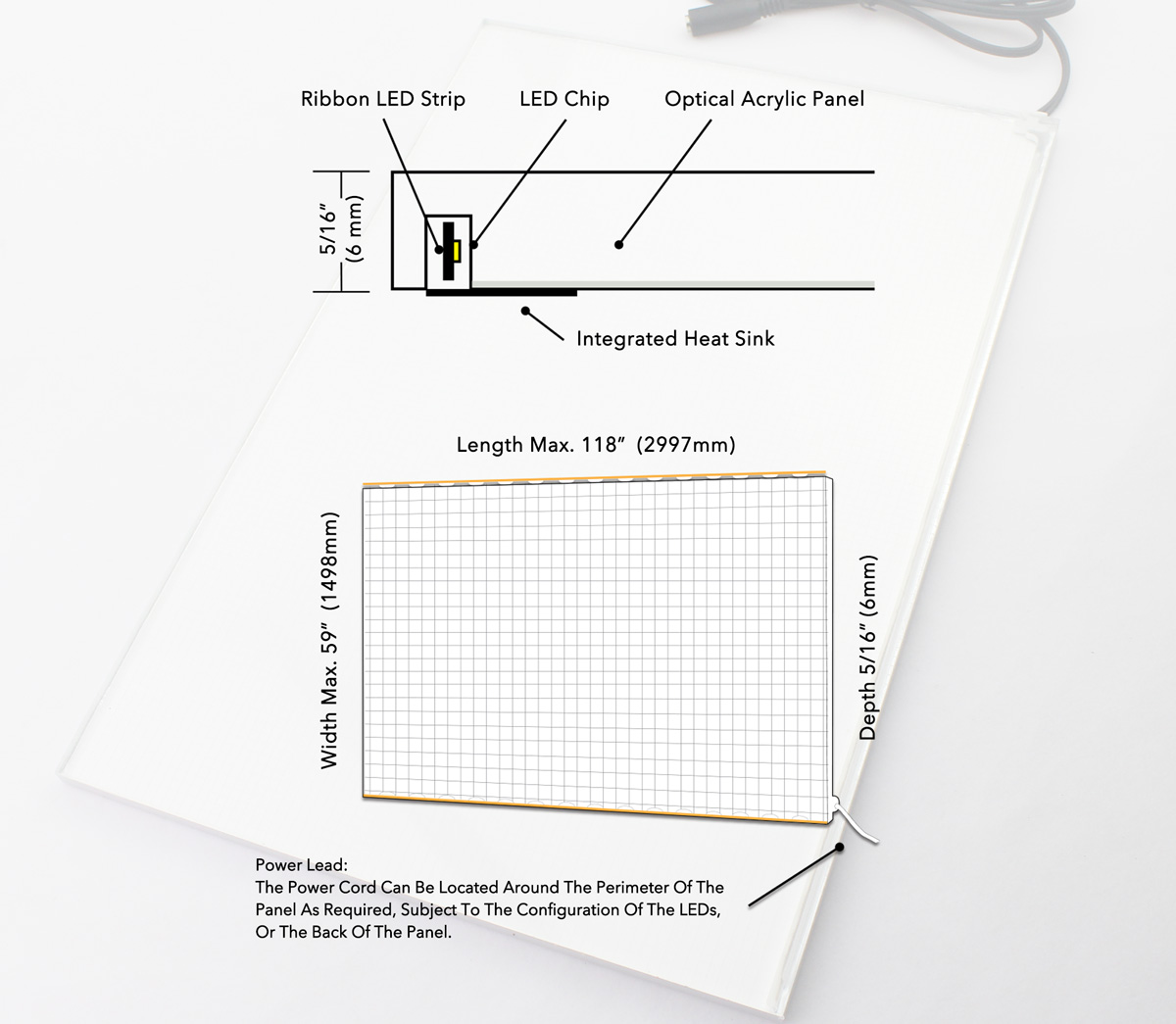

STRUCTURE

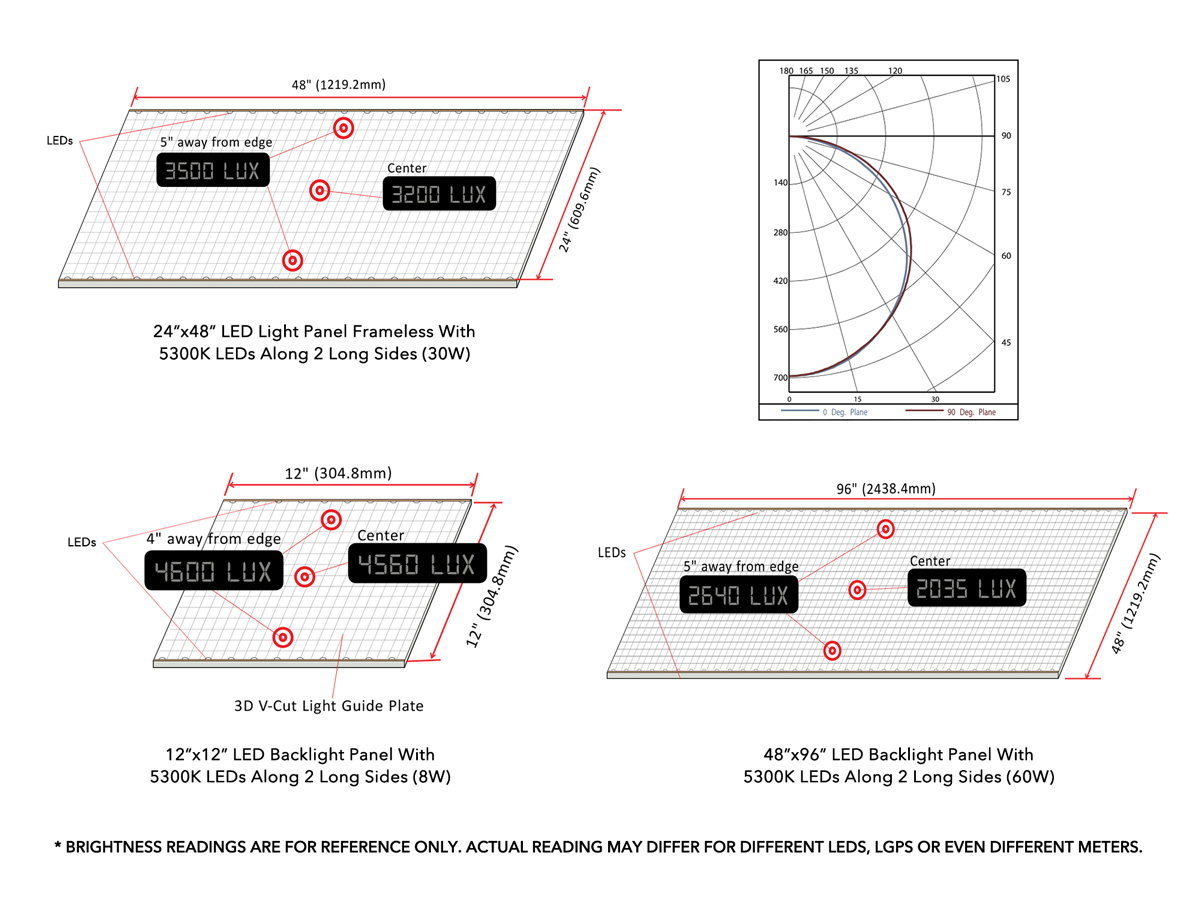

Typical Surface Brightness Measure

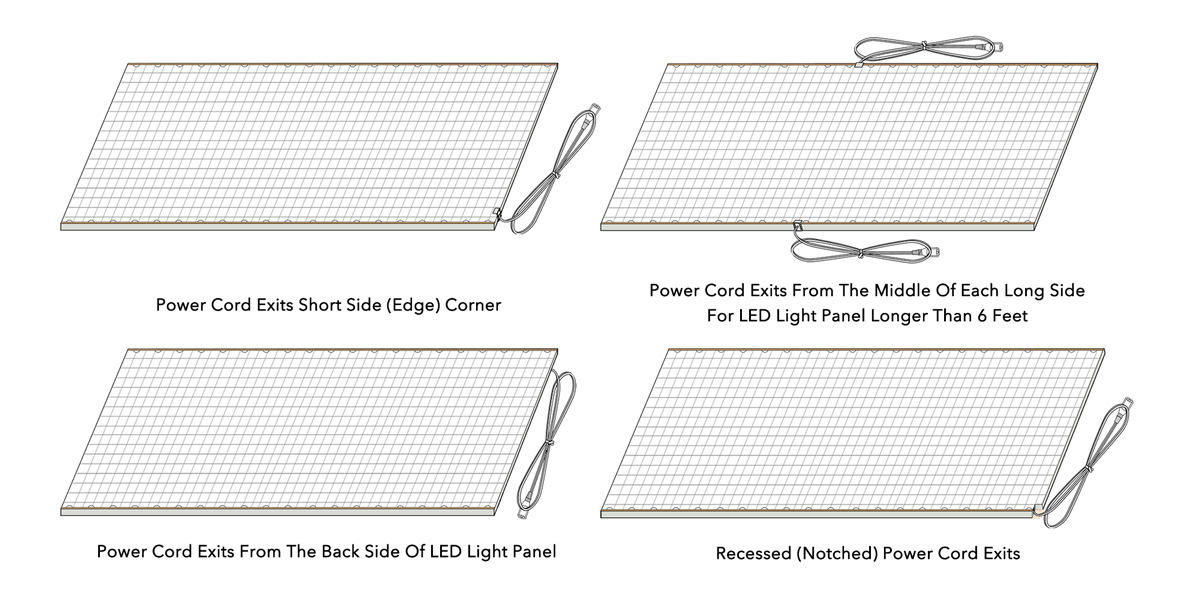

Typical Power Cord Exits

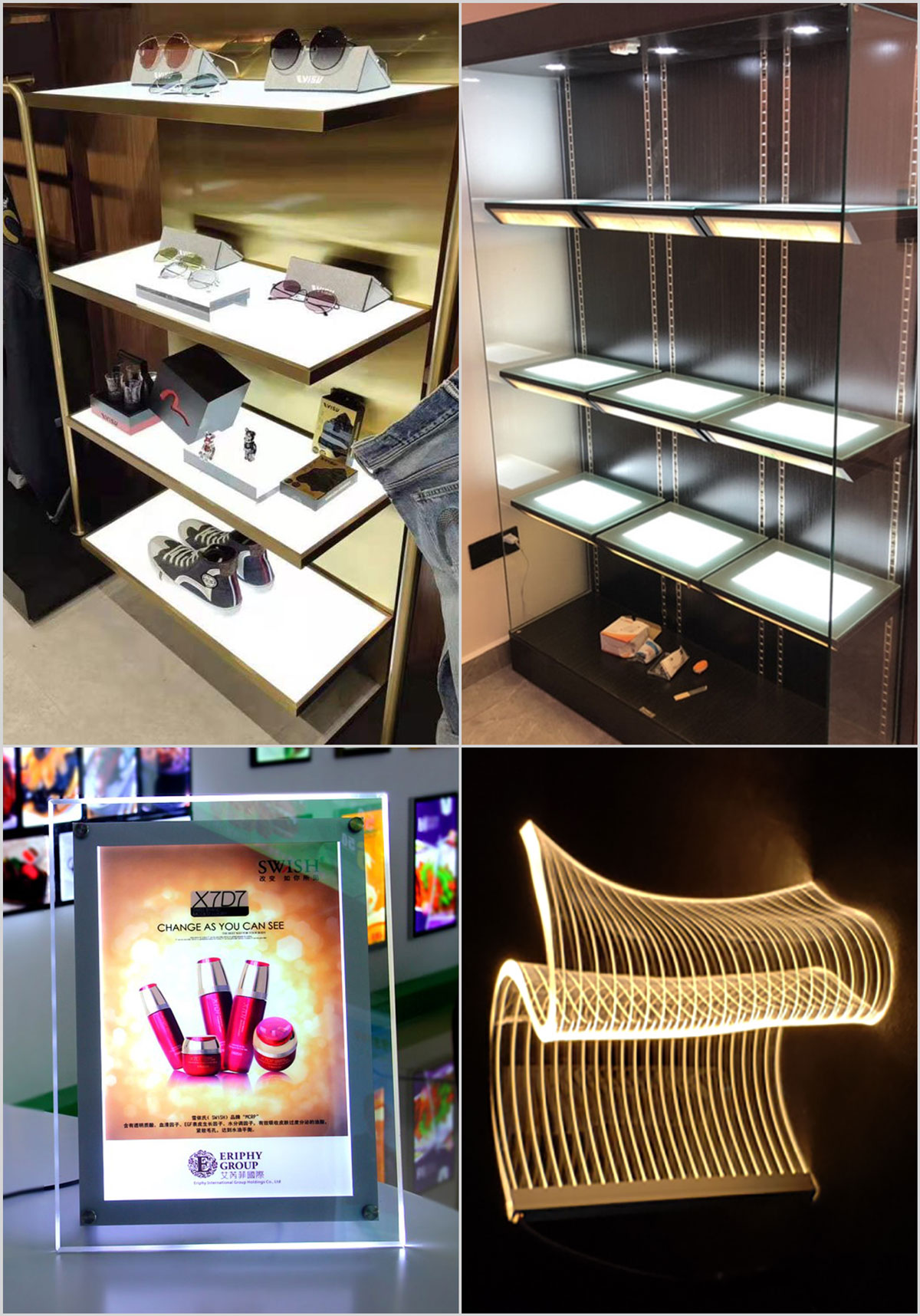

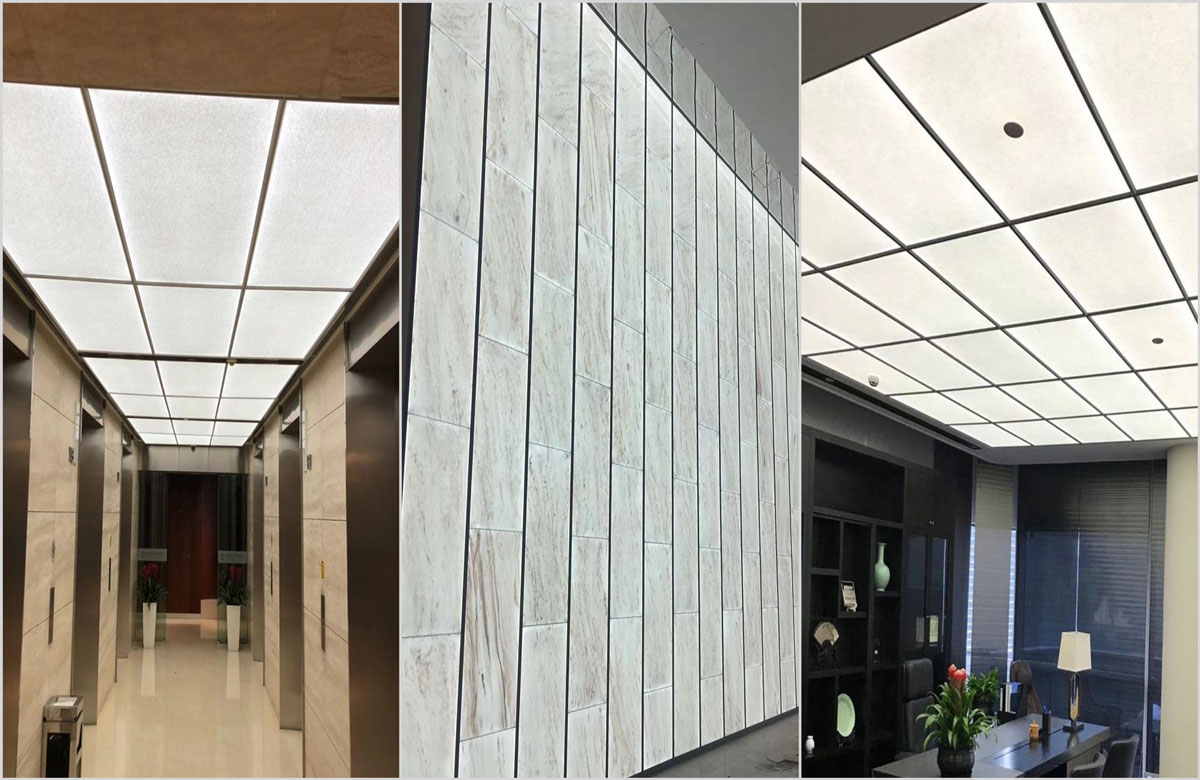

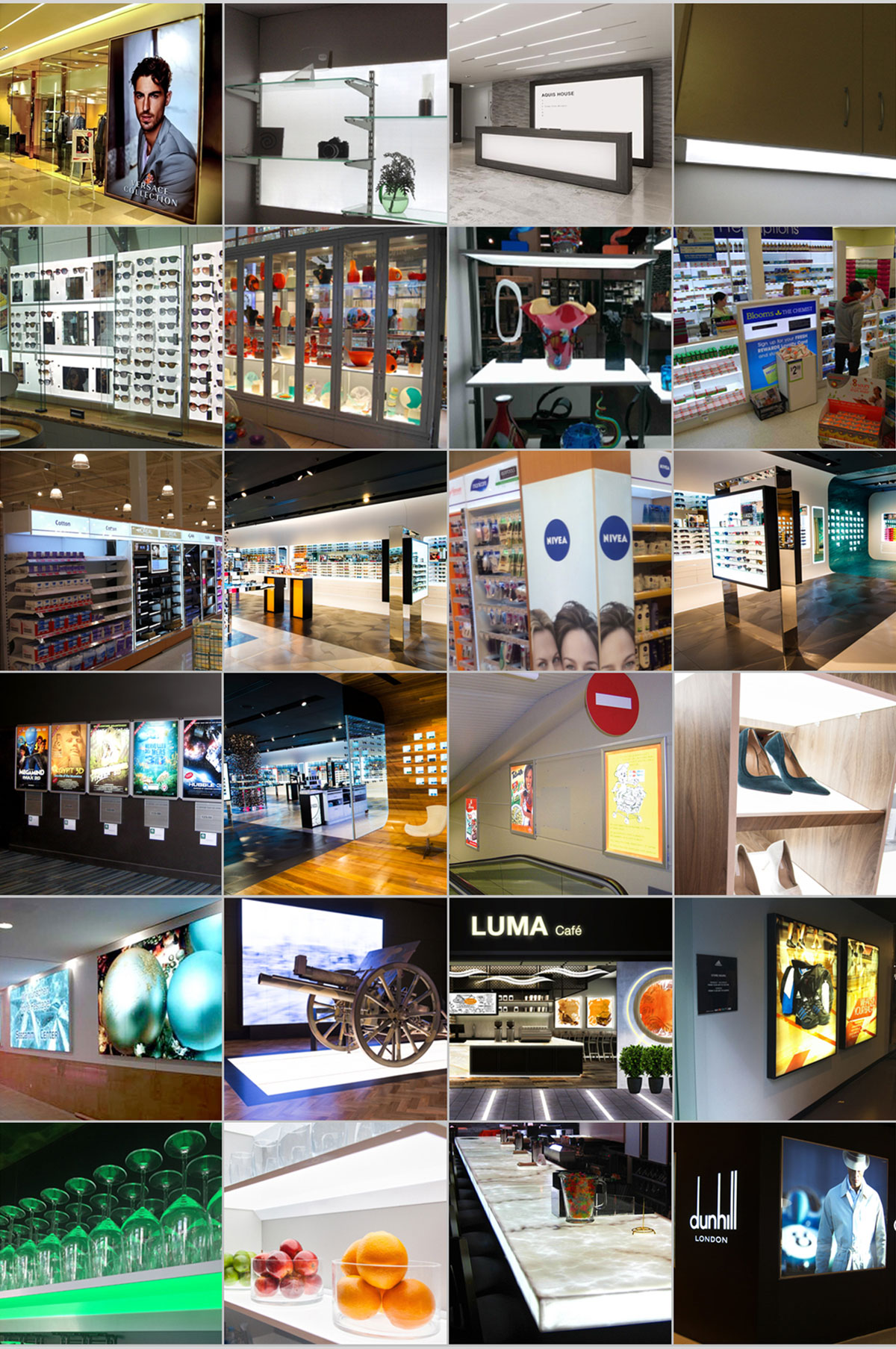

APPLICATION
