Rhombus

◆ Can Be Ordered With CAD Files(Design Drawings)

◆ High Efficacy Of The Luminaire, Max > 120lm/W

◆ Uniform Luminous Area And Lighting Without Flicker

◆ High-Quality Surface Treatment, Colors Of White/Black/Silver/Gold And Customized

◆ Smarter Disassembling For The Projects, Smaller Package & Cheaper Shippment

◆ Providing Simulation Of Dialux, More Accurate Datas For The Project

◆ Dali/Push/Remote/Triac/0-10V/Tunable/Emergency Dimming Available

◆ Luminous Area Ratio At Least 91.7%

◆ More Convenient For Connection & Installation

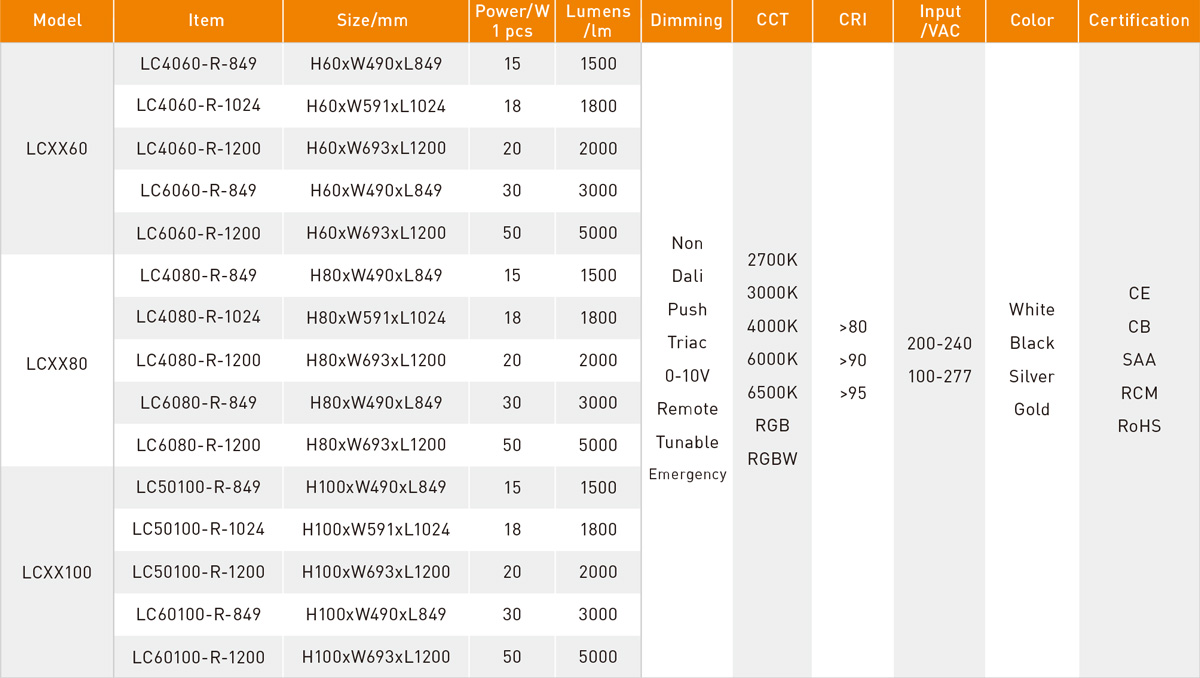

Model	LCXX-R-X
Material	AL6063-T5
Accessories	Pendant Suit, Clip, Connector, etc.
Shape	Rhombus
Diffuser	PC(Clear/Frosted/Opal/Black)
Color	White/Black/Silver/Gold & Customized
Input Voltage	AC 100V ~ 265V
Input Frequency	50Hz / 60Hz
Light Source	LED (SMD2835)
Color Temperature	2700K ~ 6500K
Beam Angle	120°
Lighting Direction	Bottom Lighting
Installation	Pendant Mounting
Operating Temperature	-20° C ~ +65° C
Package	Inner PP Bag, Outer Carton
Warranty	3 Years

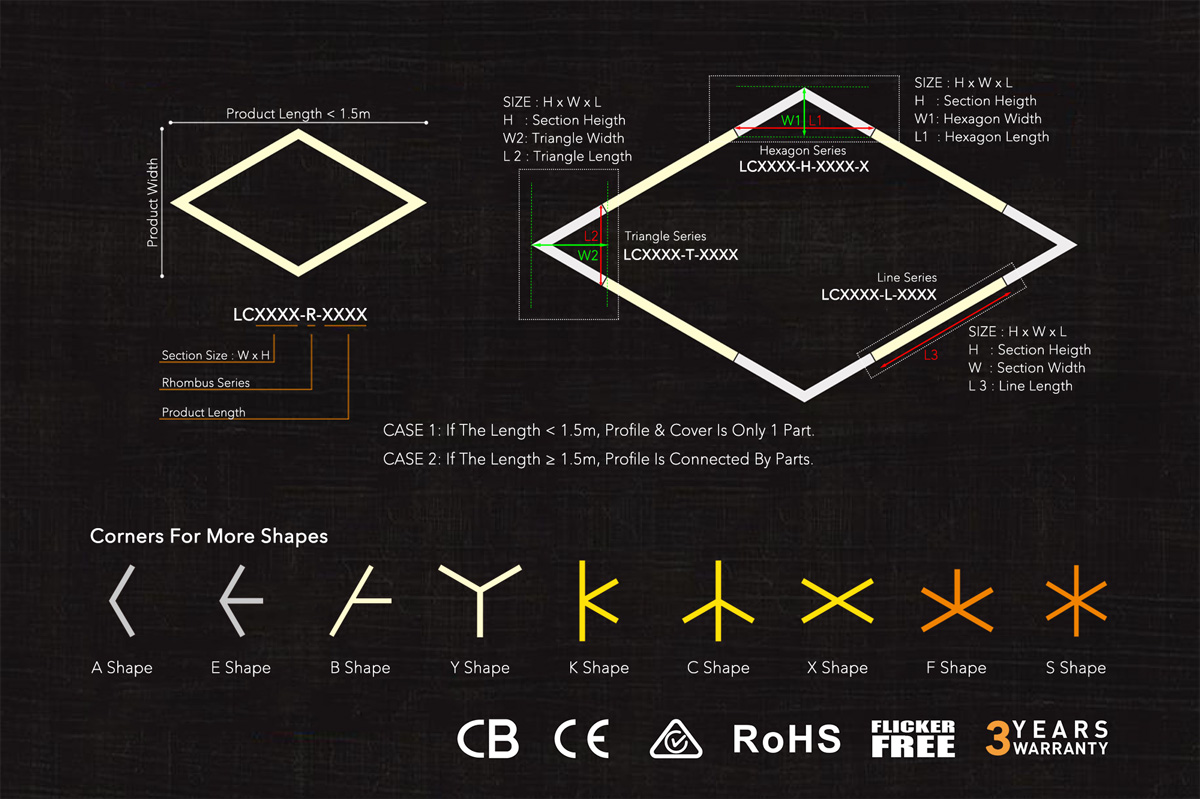

DESCRIPTION

MODEL: Length < 1.5m

ACCESSORIES

And you need information on lighting values, technical planning, installation situations or have questions about suitable lamps?
