Circle Recessed

◆  Can Be Ordered With CAD Files(Design Drawings)

◆  High Efficacy Of The Luminaire, Max > 120lm/W

◆  Uniform Luminous Area And Lighting Without Flicker

◆  High-Quality Surface Treatment, Colors Of White/Black/Silver/Gold And Customized

◆  Smarter Disassembling For The Projects, Smaller Package & Cheaper Shippment

◆  Providing Simulation Of Dialux, More Accurate Datas For The Project

◆  Dali/Push/Remote/Triac/0-10V/Tunable/Emergency Dimming Available

◆  Luminous Area Ratio At Least 91.7%

◆  More Convenient For Connection & Installation

Technical Data

ModelLRXX-C-X
MaterialAL6063-T5
AccessoriesRecessed Clips, Soft Cover, Connector, etc.
ShapeCircular Ring
DiffuserPC(Clear/Frosted/Opal/Black)
ColorWhite/Black/Silver/Gold & Customized
Input VoltageAC 100V ~ 265V
Input Frequency50Hz / 60Hz
Light SourceLED (SMD2835)
Color Temperature2700K ~ 6500K
Beam Angle120°
Lighting DirectionBottom Lighting
InstallationRecessed Mounting
Operating Temperature-20° C ~ +65° C
PackageInner PP Bag, Outer Carton
Warranty
3 Years

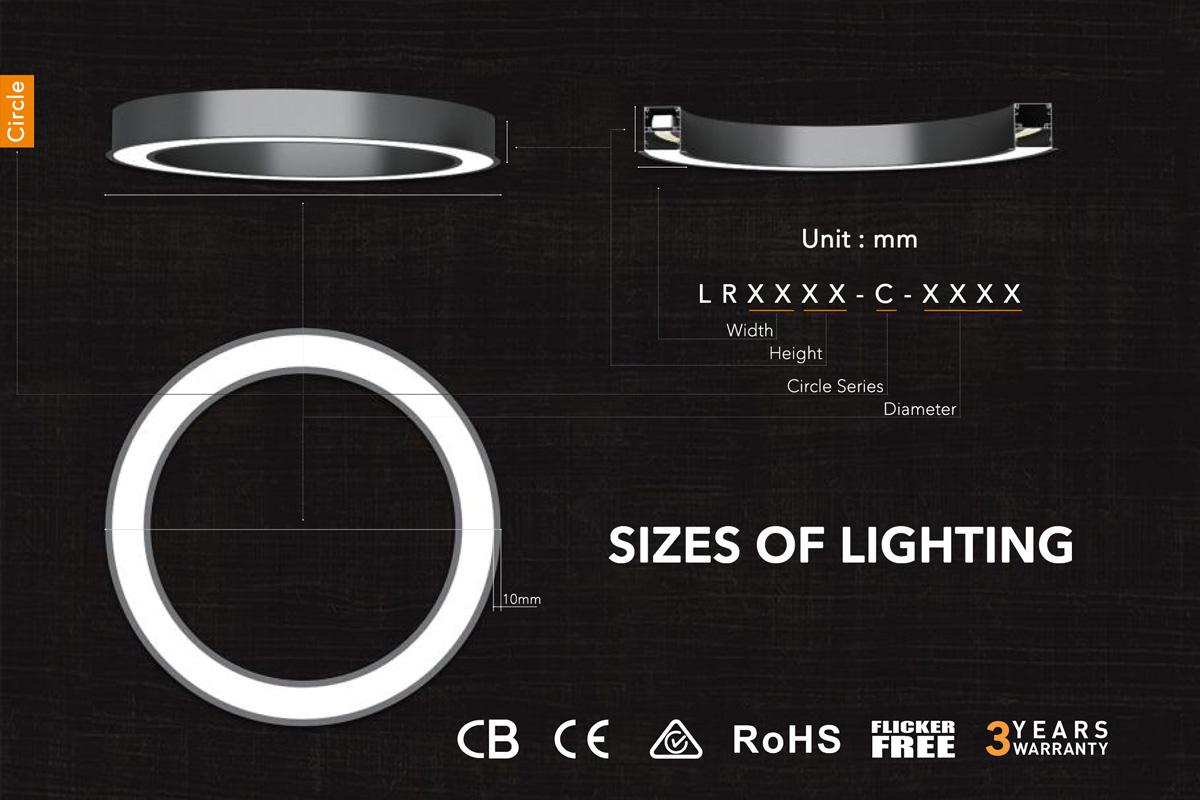

DESCRIPTION

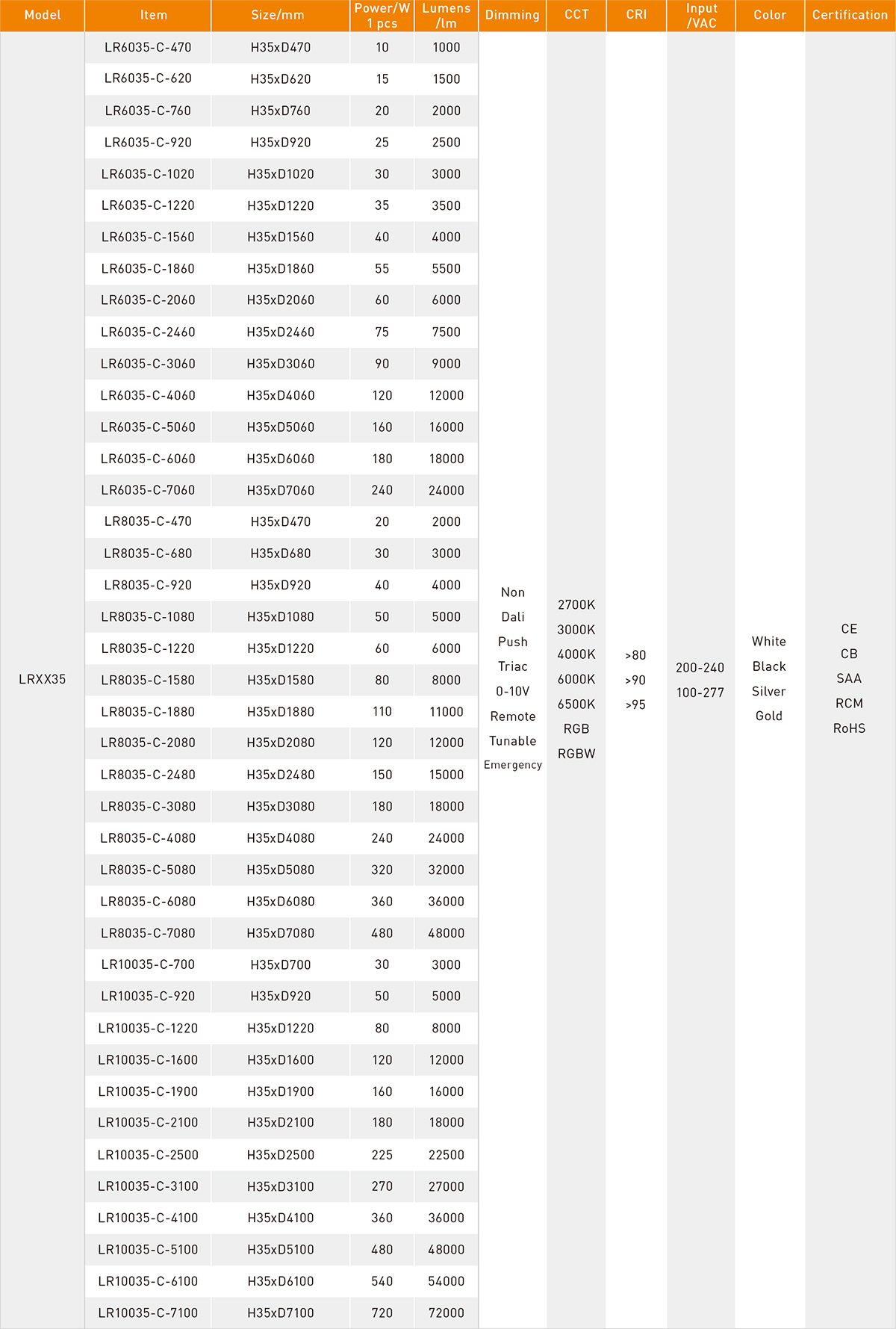

MODEL : LRXX35 SERIES

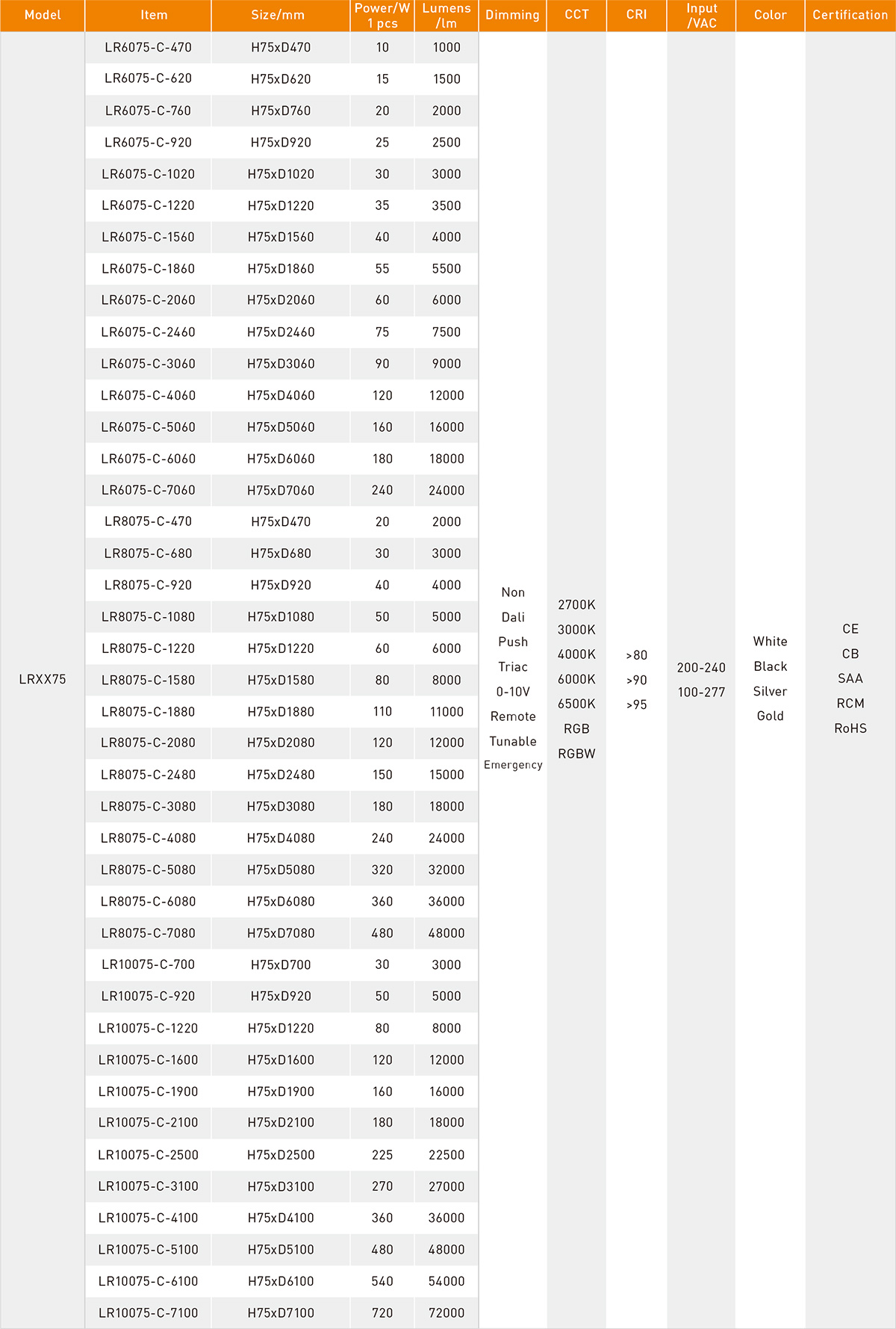

MODEL : LRXX75 SERIES

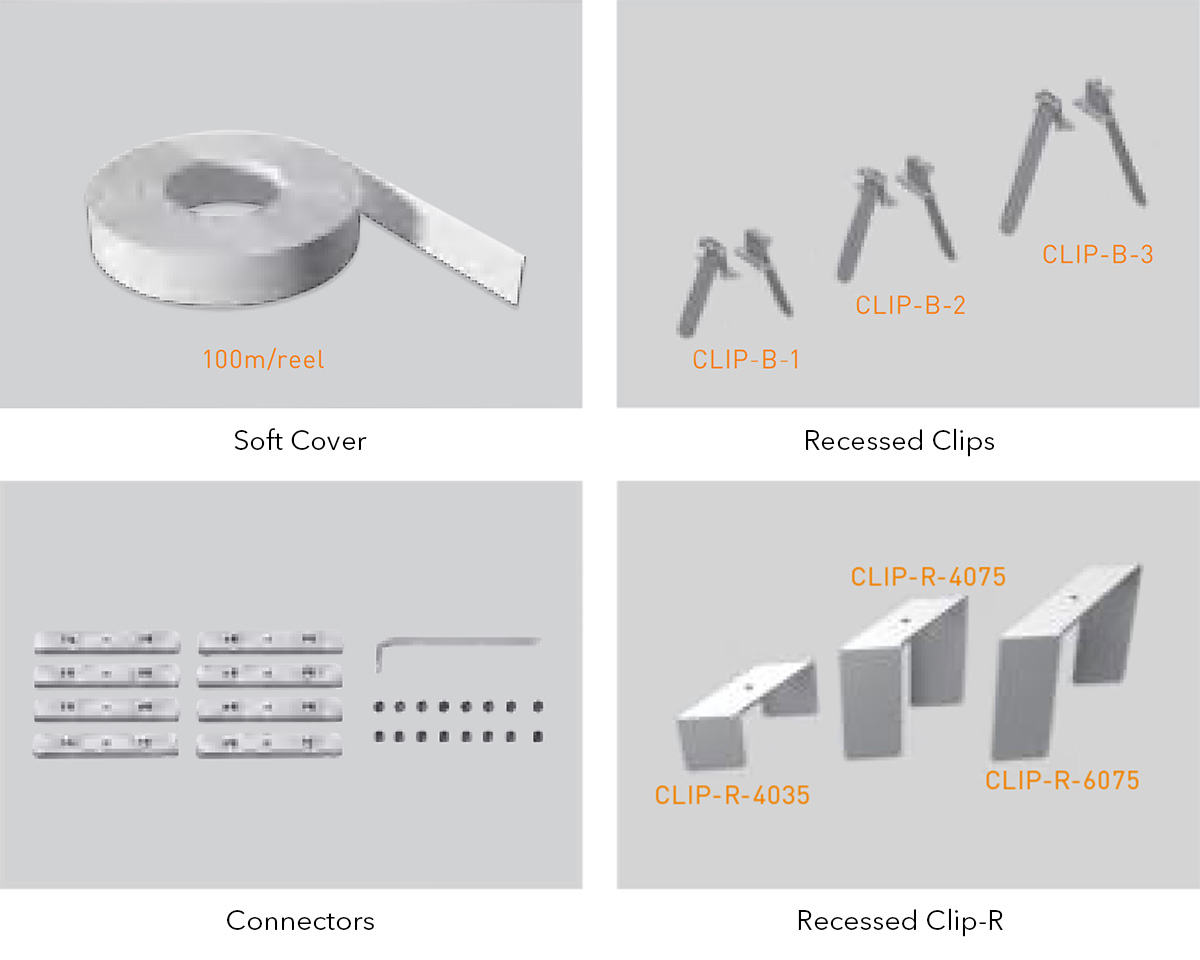

ACCESSORIES

Are you

a lighting designer, an electrical designer or an architect?

And you need information on lighting values, technical planning, installation situations or have questions about suitable lamps?

Just ask us
