ALU3811

◆  Living Room, Bedroom, Kitchen, Washroom

◆  School, University, Hospital, Hotel

◆  Conference,  Meeting Room, Show Room, Showcase

◆  Commercial Complexes

◆  Factory, Plant, Warehouse, Office

◆  Supermarket, Department Store

◆  Simple, Easy, Fast Installation

Technical Data

ModelALU3811
MaterialAL6063-T5
AccessoriesPlastic End Cap & Stainless Steel Clip
DiffuserPC(Clear/Frosted/Opal/Black)

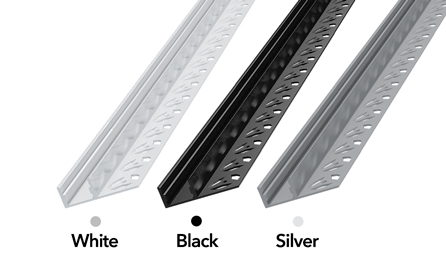

ColorWhite/Black/Silver & Customized
InstallationDrywall Mounting

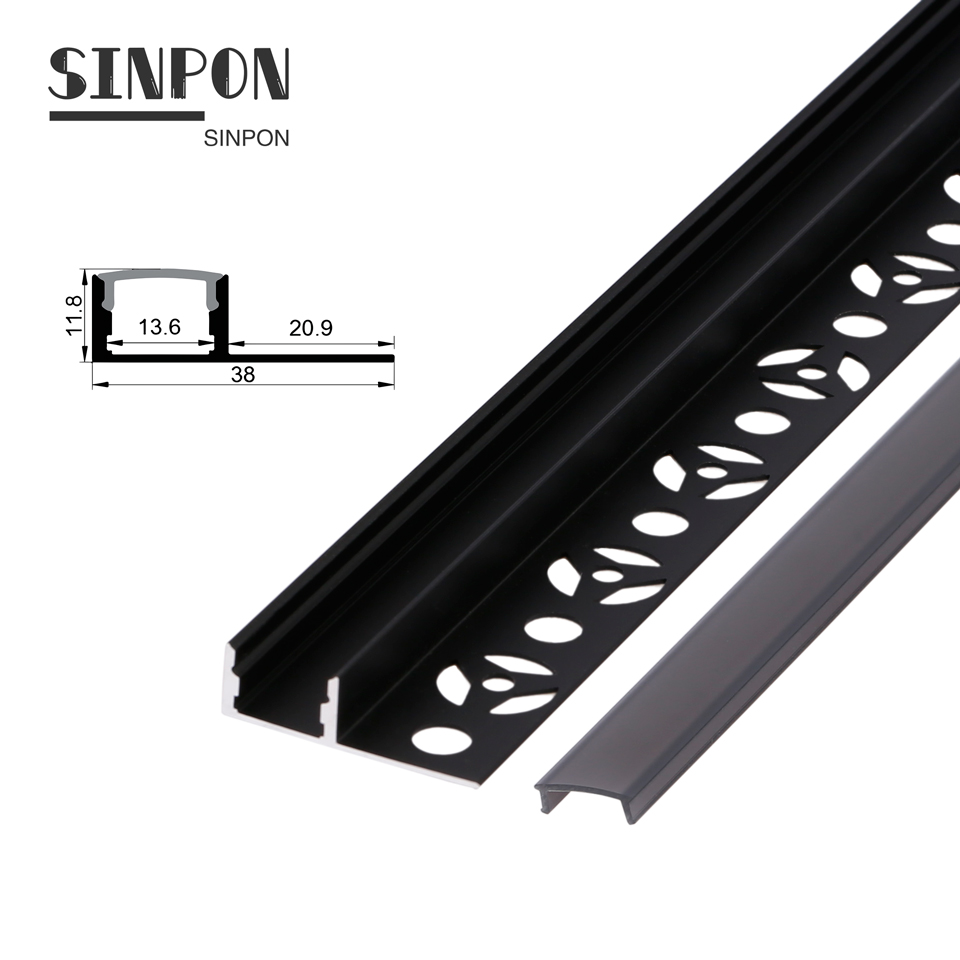

Size38mm x 11.8mm
Length1M ~ 6M Customized
PackageInner PP Bag, Outer Carton
Warranty
3 Years


ALUMINUM ALLOY PROFILE


PLASTIC CONVER ( PC )

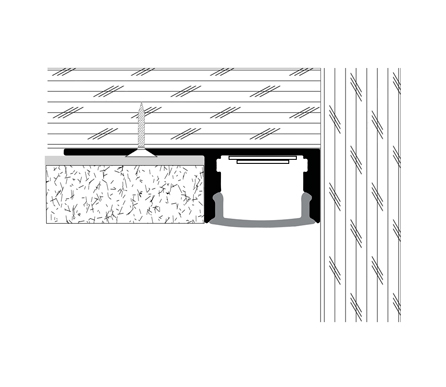

INSTALLATION

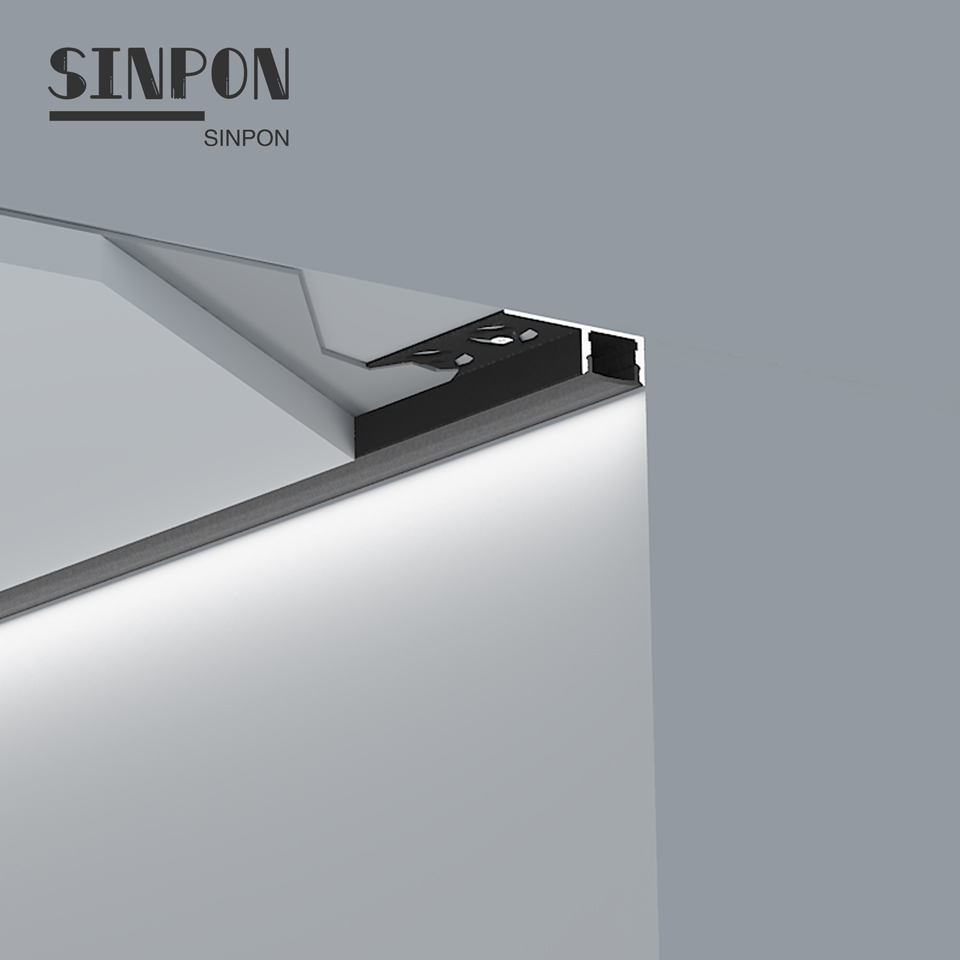

◆  Installed on the inside corner of the wall or ceiling

◆  Fix led profile on the plasterboard with screws

◆  Lay the mud sand on the wings

◆  Make coating to make it flush with the profile

◆  Mount the LED strip, fasten the cover, lead out the power cable


APPLICATION
