SMD2216_240D

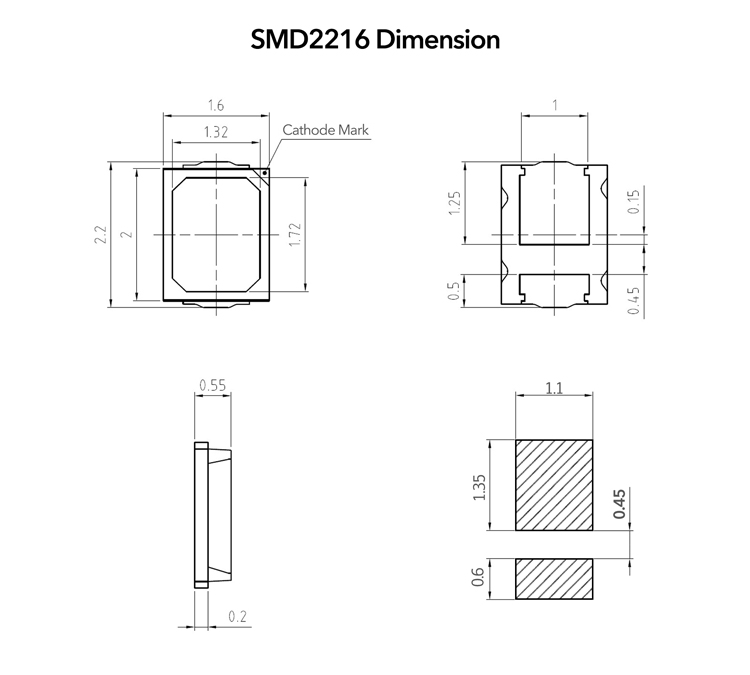

  TOP SMD2216 chip, high brightness, low decay.

  Black/white/yellow FPC are optional.DC12V or DC24V drive, safe usage.

  Thick 2oz~3oz copper PCB for excellent thermal management.

  Available in IP20,IP65,IP66,IP67,IP68.

  3M adhesive backing.

  Low power consumption, long life span, free maintenance.

  Neutral white, warm white and super warm white for customizing also available in 20 m reels. Please pay attention to the maximum length (5 m) per power input.



Technical Data

LED ChipSMD2110
IP classificationIP65

Input Voltage

DC12V

Strip PowerMax. 16W/M
Lamp Luminous EfficiencyMax. 170 Lm/W
Maximum quantity per power input5 meters
Average lifetime30,000 hour
Color temperature2700K ~ 7000K
Operating temperature-20° C till +50° C
PCB Width10 mm
min. Bending radius20 mm
LED QTY/M240 Leds/Meter
CuttableAll 3 LEDs (1.25 cm)
CRI85~95
Warranty3 Years
