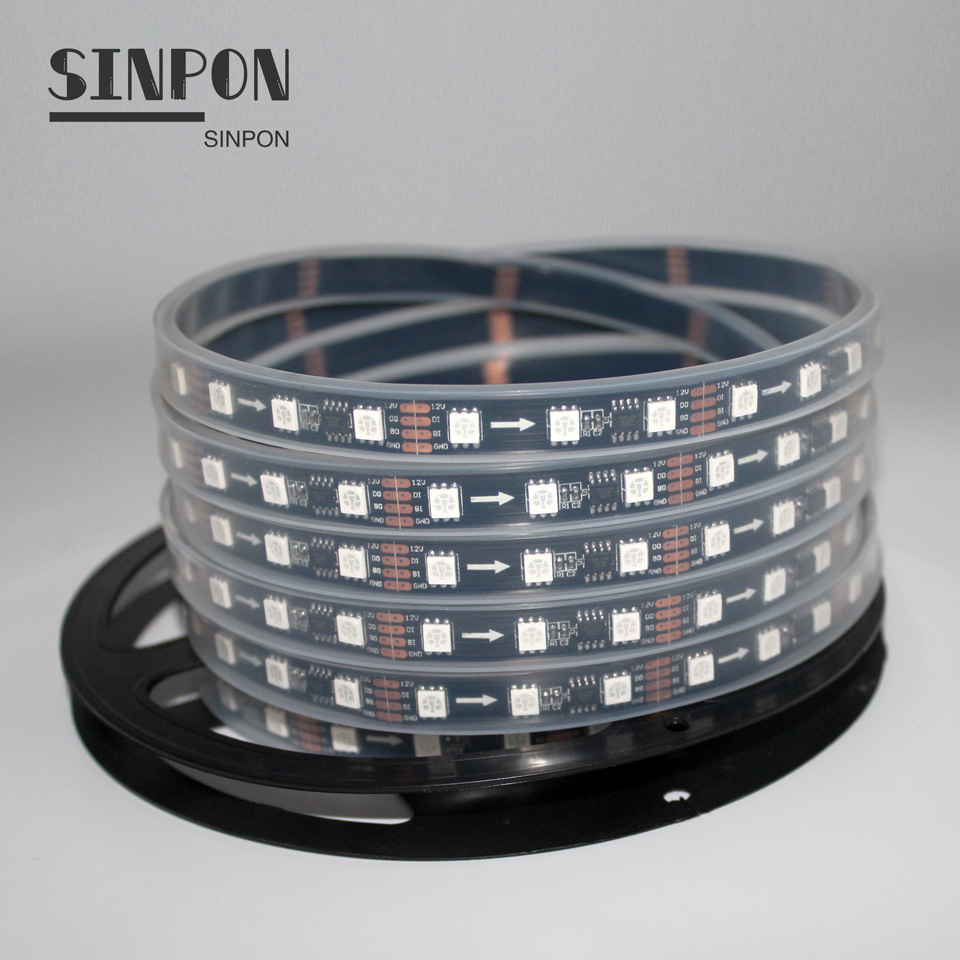

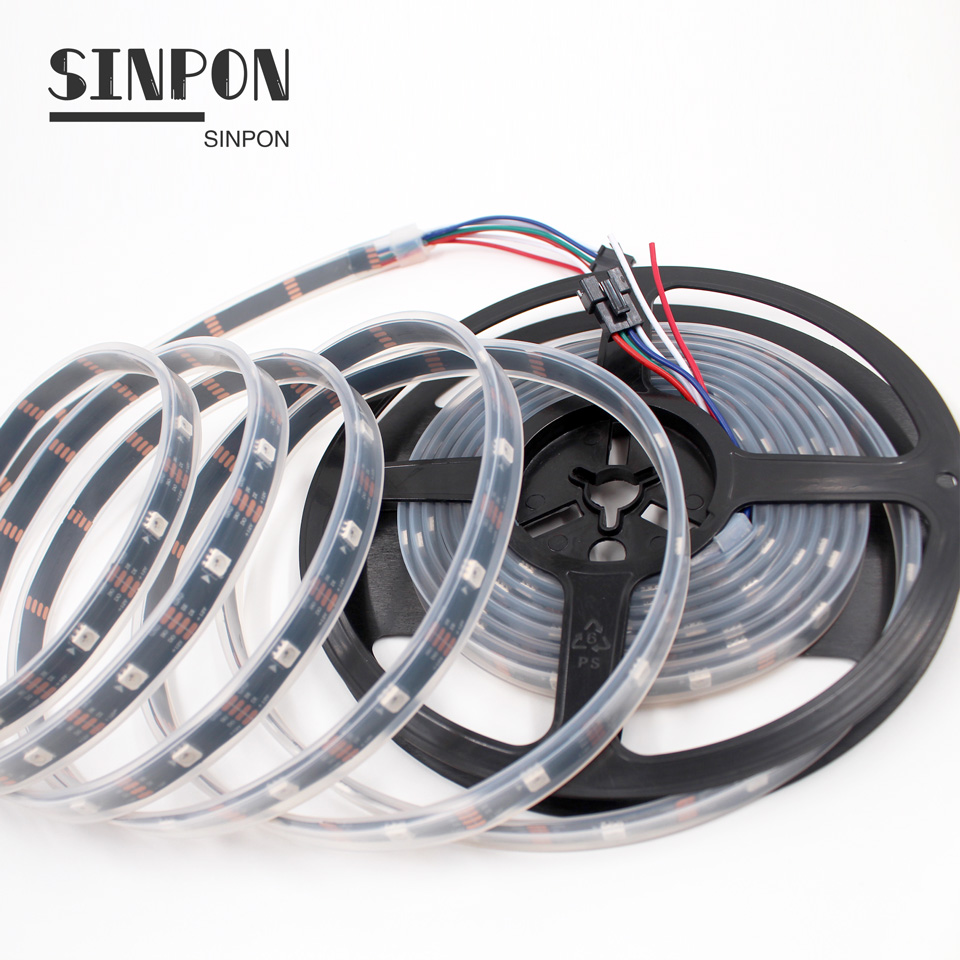

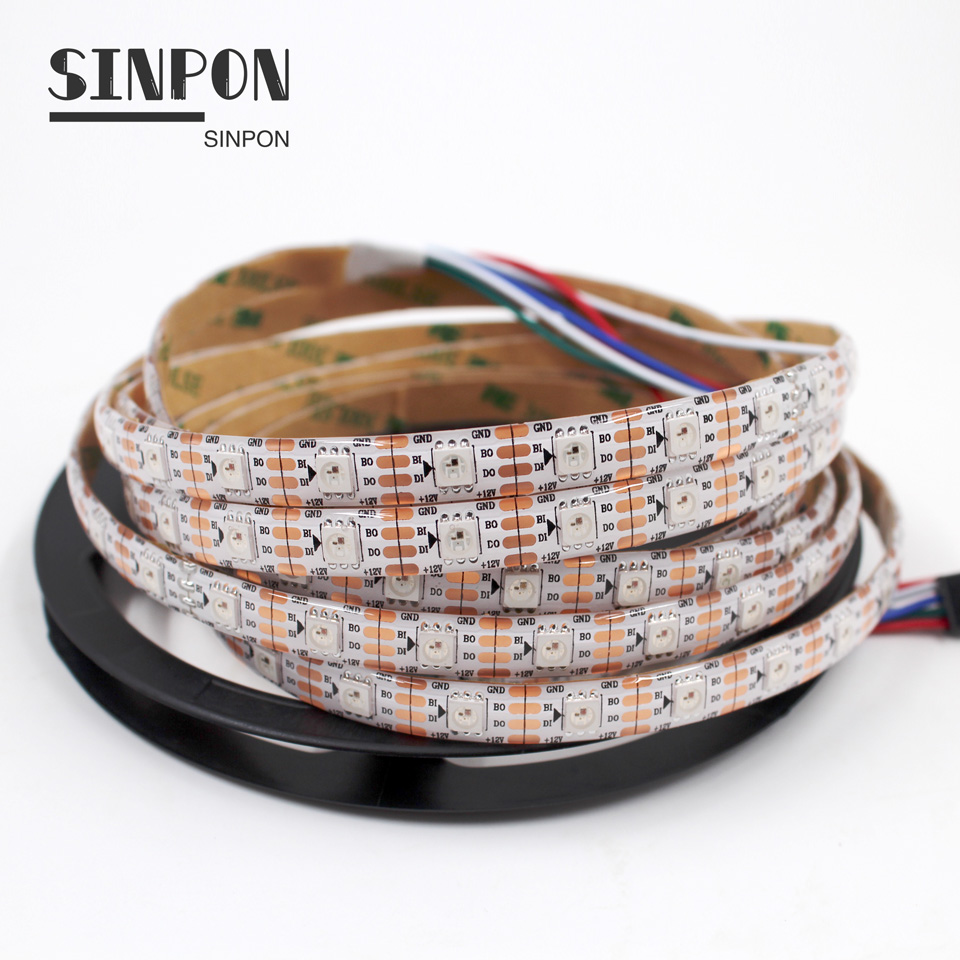

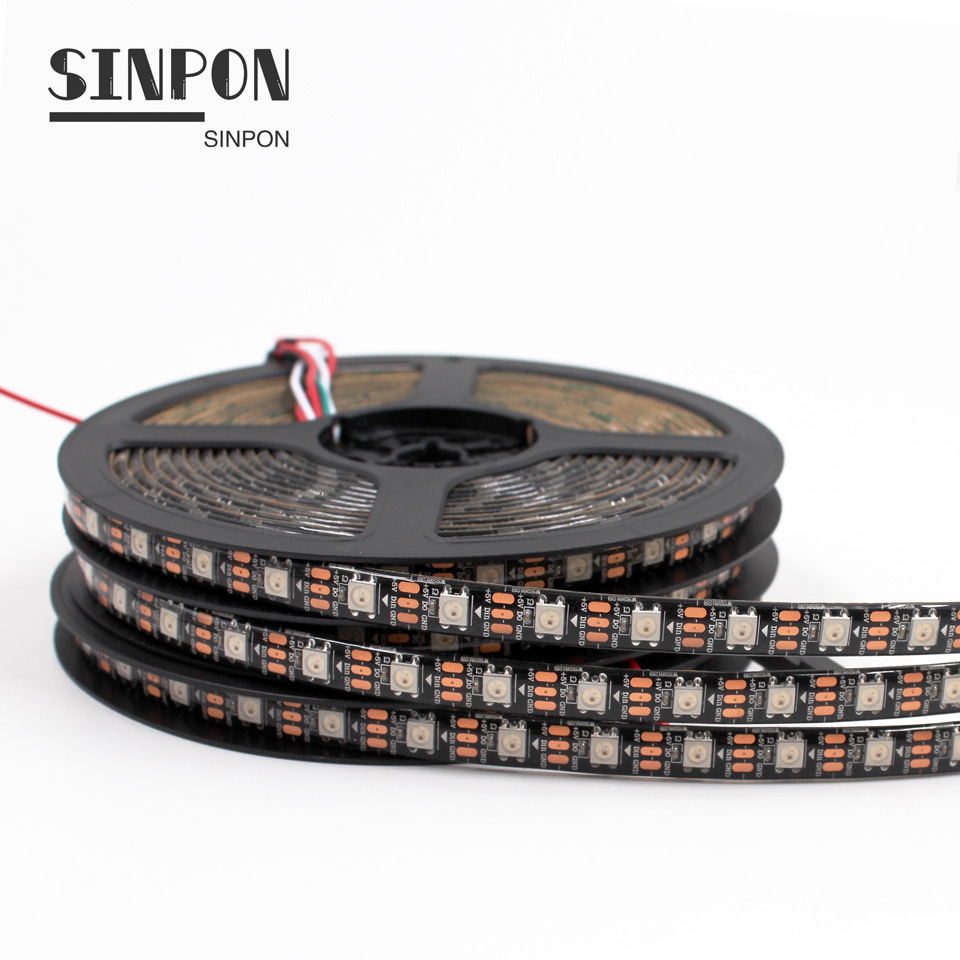

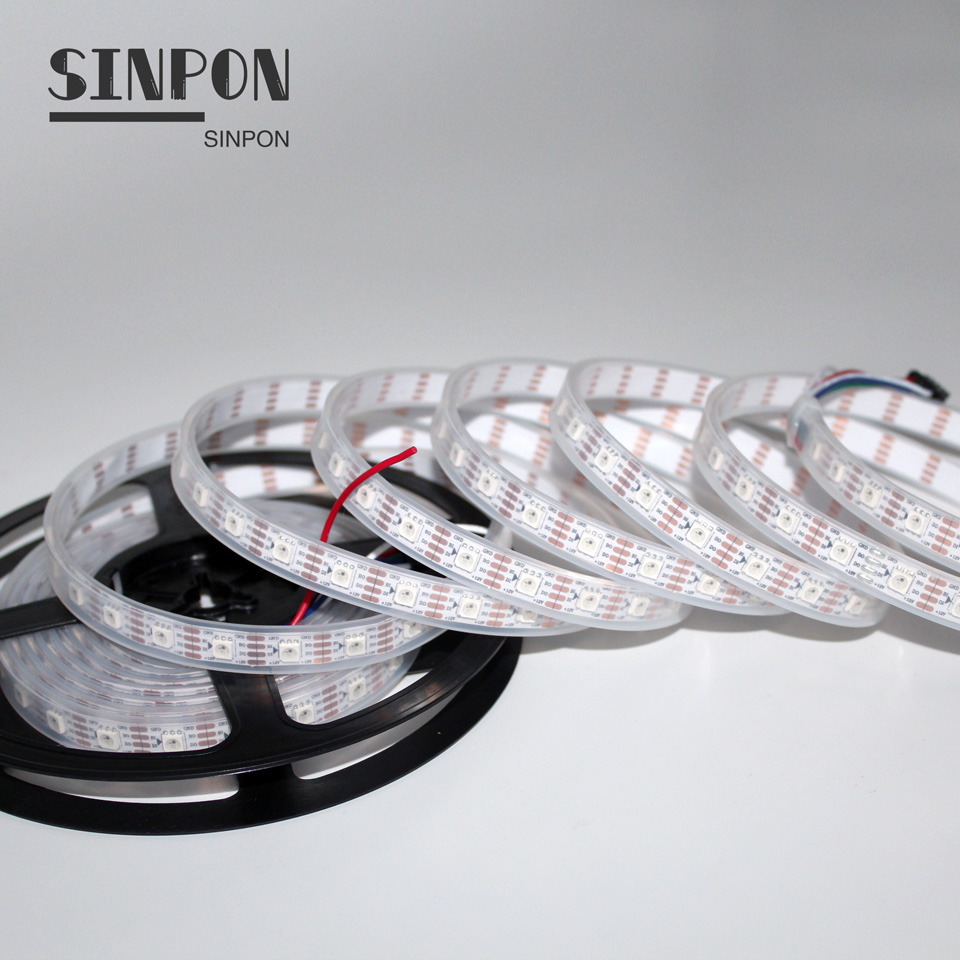

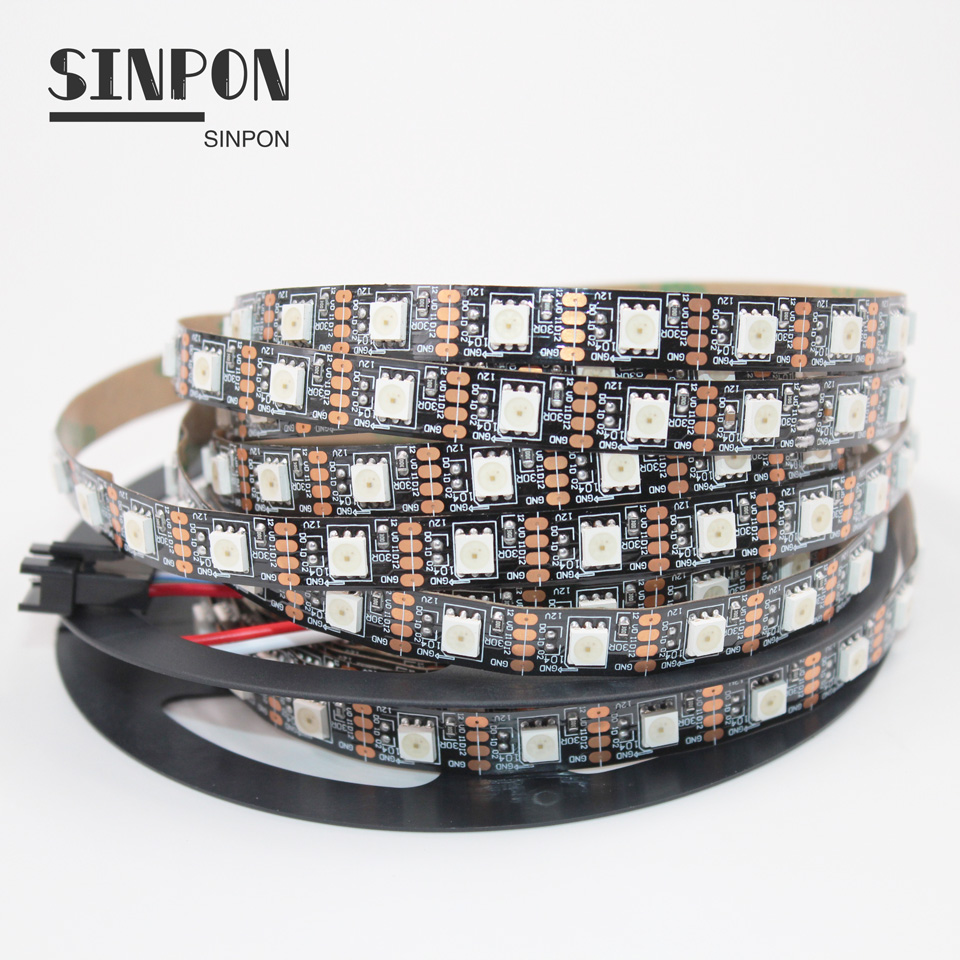

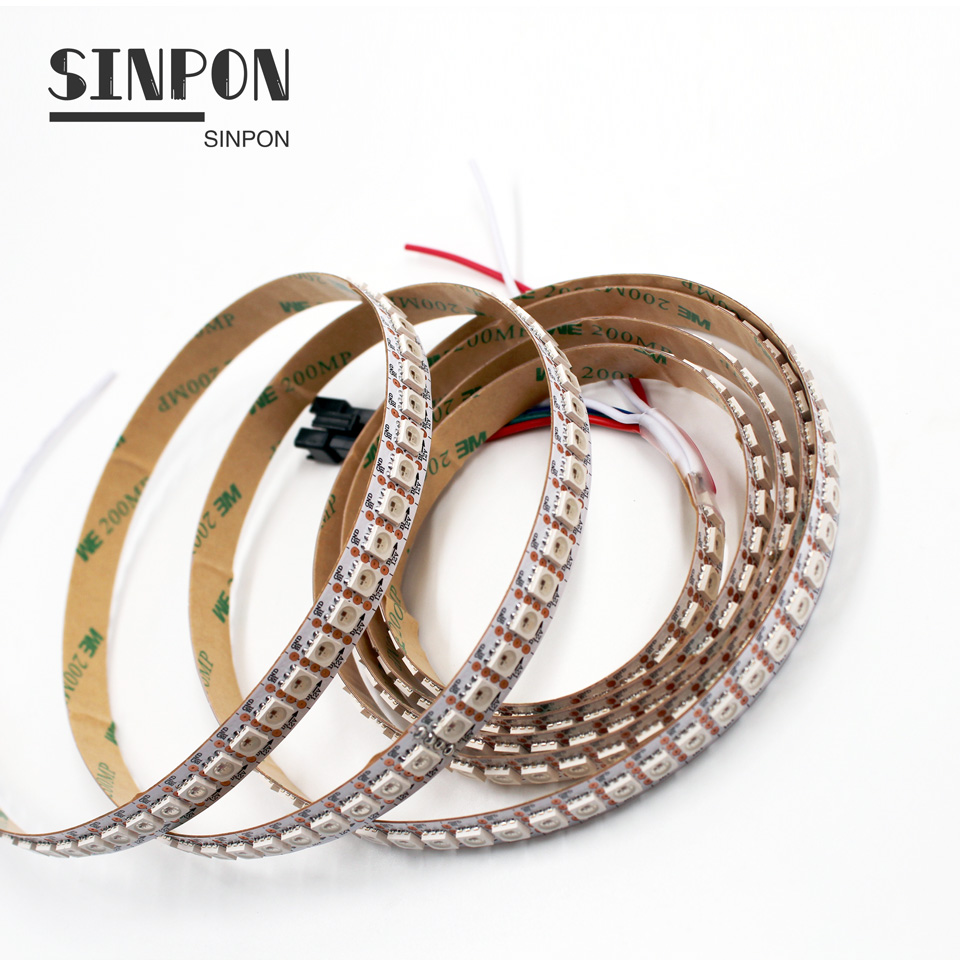

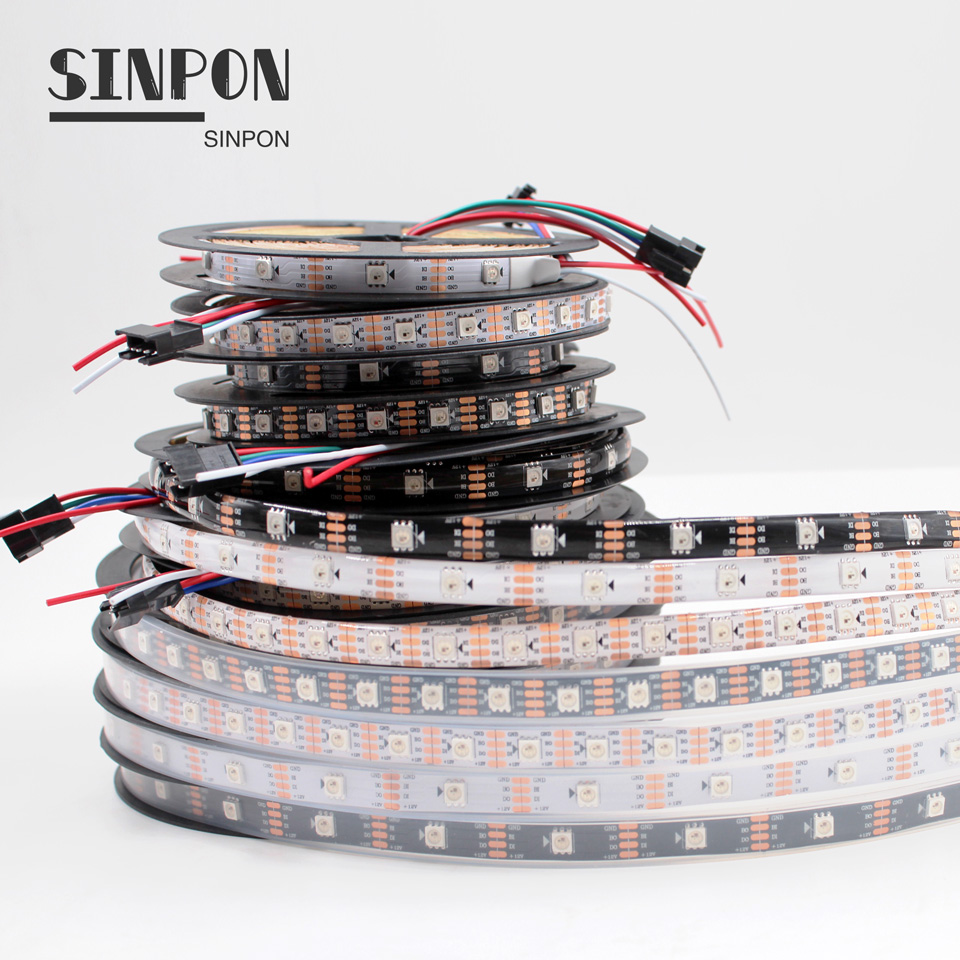

S2B_60

◆ TOP SMD3535 or SMD5050 chip, high brightness, low decay.

◆ Integrated internal control chip.

◆ DC5V or DC12V drive, safe usage.

◆ Thick 2oz~3oz copper PCB for excellent thermal management.

◆ Available in IP20,IP65,IP66,IP67,IP68.

◆ 3M adhesive backing.

◆ Low power consumption, long life span, free maintenance.

TECHNICAL DATA

LED Chip	RGB3535/RGB5050
IC Control	SK6812/WS2812
IP classification	IP20/IP65/IP67/IP68
Input Voltage	DC5V/DC12V
Strip Power	Max. 28.8W/M
Maximum quantity per power input	5 meters
Average lifetime	30,000 hour
Color temperature	RGB
Operating temperature	-20° C till +50° C
PCB Width	10 mm
min. Bending radius	20 mm
LED QTY/M	300 Leds/Meter
Cuttable	All 6 LEDs (2 cm)
CRI	85~95
Warranty	3 Years
